Radio transceiver SQUID

for air traffic management

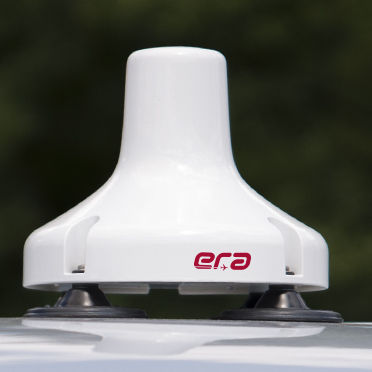

The most widespread self-contained transmitting vehicle unit for improving airport safety by broadcasting the position of ground vehicles (ADS-B squitter using GNSS). SQUID Units complement and support NEO, multilateration and ADS-B systems, to identify and track any non-transponder equipped targets. The design of the equipment ensures easy integration and interoperability with any multilateration or ADS-B system based on Mode S Extended Squitter datalink. Key benefits Full A-SMGCS exploitation SAFETY enhancements under ALL WEATHER CONDITIONS Improved situational awareness Reduced incursion risk Seamless integration with ADS-B and MULTILATERATION surveillance systems Basic specifications Carrier Frequency1090 MHz Output message formatMode S reply DF18 Operating temperature-40°C to +70°C Relative humidityUp to 100% SQUID Unit The SQUID Unit is small, lightweight and easy to install on any vehicle. The SQUID Unit consists of an electronic unit and antennas in a composite cover. Low electromagnetic emissions Small dimensions and weight Low power consumption Fully automated unattended operations SQUID Components SQUID Components can be configured in accordance with the specific requirements for permanent (fixed) or mobile (magnetic) unit holders. Fully sealed/weather resistant cable and programming connector Powered by the vehicle's own power system Extremely easy installation - fixed or magnetic on the vehicle's roof (advantage of mobility of the unit)
