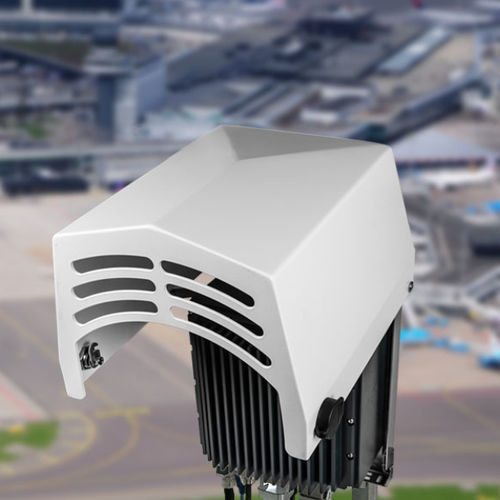

ADS-B receiver MSS-5

for air trafficweatherfor airport

Overview
MSS-5 is the 5th generation of the Multilateration Surveillance System (MSS) tailored for Air Traffic Management combining proven multilateration and ADS-B technologies. The system provides accurate real-time localization, tracking and identification of all transponder-equipped targets on airport surface, in TMA and en-route. The system operates in all weather and is suitable for any terrain profile.

Key challenges addressed

• Traffic density
• Deployability
• Time synchronization
• Safety
• Security

Solutions and use cases (Gate to Gate surveillance)

• MLAT (Surface Surveillance): Surface Multilateration by MSS-5 provides ground surveillance including immediate airport vicinity.
• WAM (Wide Area Multilateration): Wide Area Multilateration delivers accurate surveillance for TMA and en-route areas across challenging terrains.
• ADS-B: MSS-5 decodes ADS-B per applicable standards and can be deployed as standalone redundant ADS-B ground-station network with ASTERIX output or as ADS-B receivers network fused in a Central Processing Station to provide a single ADS-B track.
• PRM (Parallel Runway Monitoring): High accuracy supports safe approaches to parallel runways at high-traffic airports.
• HMU (Height Monitoring Unit): MSS-5 supports height monitoring and contributes to RVSM implementation (vertical separation down to 1000 ft).
• VTS (Vehicle Tracking System): Combined with SQUID, MSS-5 forms a vehicle tracking solution to improve apron safety and operations efficiency.

5 key features

• 2020+ standards readiness
• Dual Station Data output: ASTERIX and raw MLAT
• Expandable modular solution for flexible deployment, mast up or down
• All-weather operation across climatic and terrain challenges
• Worldwide GNSS synchronization (GPS, GLONASS, GALILEO, BEIDOU)

Basic specifications
Type of system: Multilateration Surveillance System
Number of input channels per station: 2
Type of targets: Mode A/C, Mode S, DO-260C
Operating temperature: -40°C to +60°C
Relative humidity: up to 100%
Station Data output: ASTERIX and raw MLAT
PoE: 4x60 W
Modulation: PAM, PPM, Phase Overlay PSK, MSK
Racks: outdoor (IP65) and indoor options

5 Challenges & MSS-5 solutions (summary)
TRAFFIC DENSITY: Traffic will increase and new ATM layers for UAS are expected.
MSS-5 solutions:

• DO-260C standard
• Phase Overlay ready

DEPLOYABILITY: Need for simple, all-in-one solution for quick deployment and lifecycle support.
MSS-5 solutions:

• 2-module solution: 1 receiving + 1 supply module
• Small, light and compact
• Easy deployment, mast up

TIME SYNCHRONIZATION: Multistatic systems require synchronization from multiple sources.
MSS-5 solutions:

• GPS, GLONASS, GALILEO, BEIDOU
• Alternative synchronization

SAFETY: Continuous accurate and reliable performance required.
MSS-5 solutions:

• Remote control and updates
• Eurocae standards compliance

SECURITY: Surveillance is critical infrastructure and requires high security.
MSS-5 solutions:

• Quido security monitoring
• Linux-based receiving module

Architecture
Receiving module – 5 in 1: 2 Receiving Modules (RXU), 2 Site Monitoring Modules (SMU) and 1 Processing Module (RPU).
Supply module – 5 in 1: Standard Power Supply, PoE Supply, Security monitoring module, Safety monitoring module, In-build Switch.

Technical specifications

• Product: MSS-5 multilateration and ADS-B surveillance system
• System type: Multilateration Surveillance System
• Targets supported: Mode A/C, Mode S, DO-260C
• Input channels per station: 2
• Operating temperature range: -40°C to +60°C
• Relative humidity: up to 100%
• Station outputs: ASTERIX and raw MLAT
• PoE capability: 4x60 W
• Modulation supported: PAM, PPM, Phase Overlay PSK, MSK
• Racks: outdoor (IP65) and indoor options
• GNSS synchronization: GPS, GLONASS, GALILEO, BEIDOU (supports alternative synchronization)
• Modular deployment: 2-module solution (receiving + supply), mast up/down adaptable
• Security: Quido security monitoring; Linux-based receiving module
• Standards: 2020+ readiness and Eurocae compliance
