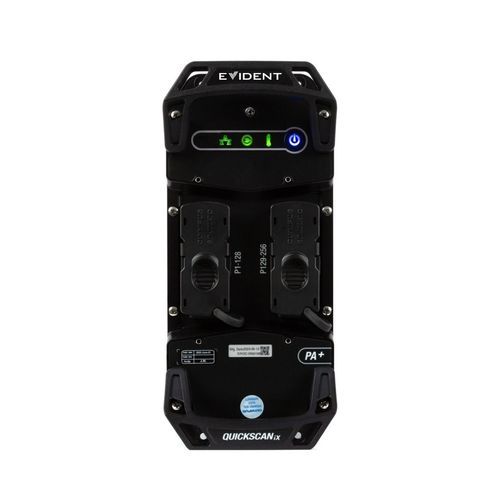

Data acquisition unit for aerospace applications QuickScan iX PA+

for ultrasonic NDTwithout display

Evident offers a complete advanced phased array (PA) integration solution that meets the requirements of your most demanding customers. The solution includes the QuickScan iX™ PA+ data acquisition unit, a high-performance phased array device designed for flexible integration, and a versatile software suite offering a wide range of options for system setup, acquisition, and data management to meet various industry needs. Boost Productivity with Advanced Phased Array Instrumentation Evident delivers a complete, advanced phased array (PA) integration solution designed to meet the most demanding inspection requirements. The solution includes the QuickScan iX™ PA+ data acquisition unit—a high-performance PA device designed for flexible integration—paired with a versatile software suite that enables streamlined system setup, acquisition, and data management across a wide range of industry applications. High-Quality Phased Array Results Built with advanced Evident phased array technology, the QuickScan iX PA+ data acquisition unit provides an excellent signal-to-noise ratio for reliable, high-quality inspection results. Up to 256 Phased-array channels (64 pulsers) Up to 4 Apertures in parallel per instrument Versatile and Expandable to Grow with Your Inspection Requirements A single QuickScan iX PA+ unit can operate up to 4 phased array apertures in parallel, enabling increased inspection throughput. For even greater capacity, multiple QuickScan iX PA+ units can be configured to work simultaneously. Contact your Evident representative to explore configuration options. Up to 25 kHZ acquisition rate Up to 90 MB/s data throughput
