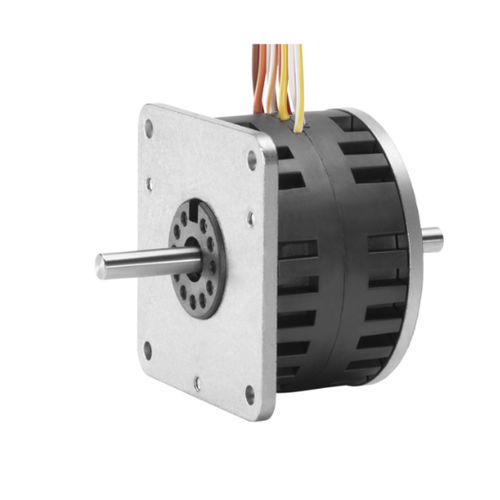

Light aircraft electric motor DM40100R2R094000

two-phase stepper

Diameter: 40 ... 52 mm Length: 20.3 ... 32.6 mm Step angle (full step): 3.6 ° 4-coil motor with low inertia disc magnet for very dynamic movement The stepper motors of the FAULHABER DM-Dynamic series are especially equipped for tasks that involve highly dynamic movement. The low inertia of the disc magnet leads to an extremely high acceleration and deceleration and makes quick changes of direction possible. With doubled windings with separate connections, the FAULHABER DM-Dynamic motors are redundant drive systems by design. They require only minimal installation space thanks to their short length in addition to their low weight. The DM-Dynamic stepper motors are ideally suited for applications with very dynamic movement, like in feeder devices or tooling selection wheels in the semiconductor industry. Thanks to their redundant windings, they can also be used in tasks where redundant motor phases are required, such as in the positioning of satellite elements like thruster arms or antennas. The DM-Dynamic series can be combined with fitting controllers, encoders, gearheads and linear actuators to form a complete drive solution.
