Incremental encoder IERF3-16384 L
for aircraftdigitalcompact

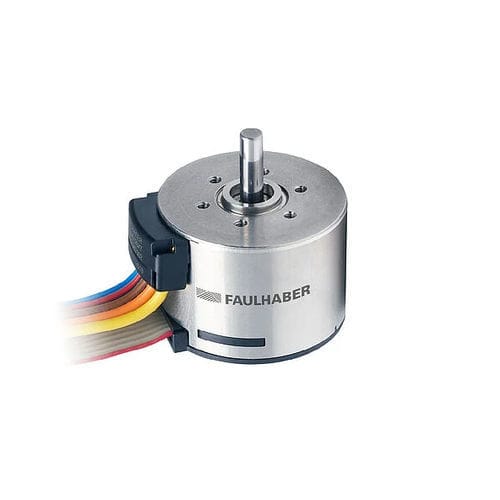

Incremental encoder - IERF3-16384 L - FAULHABER Drive Systems - for aircraft / digital / compact

Incremental encoder - IERF3-16384 L - FAULHABER Drive Systems - for aircraft / digital / compact - image - 2

Incremental encoder - IERF3-16384 L - FAULHABER Drive Systems - for aircraft / digital / compact - image - 3

Add to favorites

Compare this product

Go to the FAULHABER Drive Systems website for more information

Characteristics

Type

incremental

Applications

for aircraft

Output signal

digital

Other characteristics

compact

Output frequency

250 kHz

Process temperature

Min.: -40 °C
(-40 °F)

Max.: 100 °C
(212 °F)

Description

Encoder channels: 3 Advantages Integrated encoder for brushless flat DC-micromotors of the BXT H series Extremely compact with a length of only 6.2 mm Line Driver Index channel Wide range of resolutions Values at 22° and nominal voltage - Value Lines/Steps per revolution - N - 1024 Signal output, square wave - - 2+1 Index and complementary outputs Current consumption, typical - IDD - 45 mA Index Pulse width - P0 - 9020 °e Phase shift, channel A to B - Φ - 9020 °e Inertia of sensor magnet - J - 1.33 gcm² Accuracy, typ. - - 0.1 °m Repeatability, typ. - - 0.007 °m Hysteresis - - 0.01 °m Edge spacing, min. - - 62.5 ns Mass, typ. - - 16.8 g
