Hermetically sealed optical assembly with 3 year warranty
Standard I/R for NVG compatibility
Optional photo cell available for longer operating time
Low profile glass lens for high visibility and safer operations
Pre-wired for quick and easy installations
Mil-spec anodized cast aluminum body suitable for the harshest environments

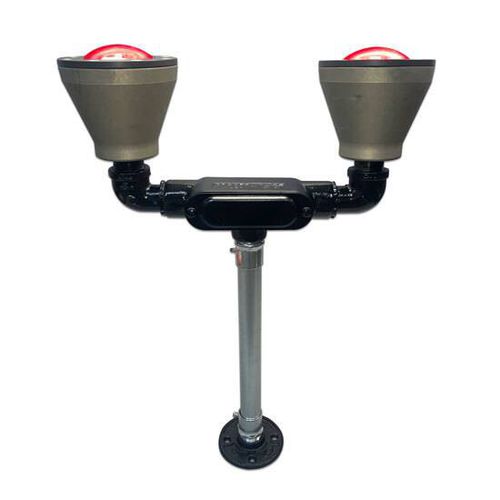

FEC offers a dual obstruction light for added safety and minimal maintenance in remote locations. Dual obstruction lights are lightweight and available as steady on 24/7 or with photo cell for longer operating life.
CERTIFICATIONS & COMPLIANCES
FAA L-810 (EB98)
ICAO Annex 14
Cap 437
CAA
ETL
UL1598
ELECTRICAL CHARACTERISTICS:
Operating Voltage: - 120/277V
Maximum Power: - 12 watts, .4 amps @ 120V
Operating Temperature: - -13⁰f to 122⁰f
-25⁰c to +50⁰c
Operating Lifespan: - LED’s Rated at 50,000+ hours
Light Source: - Omni-Directional LED lamp
1x OSLON SSL 150 LED w Optic
3x OSLON BLACK IR DIODE
PHYSICAL CHARACTERISTICS:
Light Fixture -
Height: - 23" approx.
Width: - 15" approx.
Light Unit -
Height: - 4" approx.
Width: - 4 3/4" approx.
Light Fixture Finish: - Hard Anodize per MIL-A-8625 Type II, Class 1
Materials -
Housing Material: - Cast Aluminum
Lens: - Tempered Glass
Fixture: - Black Painted Steel
