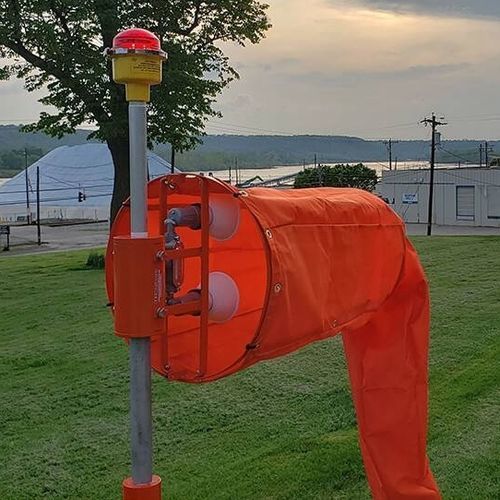

Airport wind cone HP0908
with mastinternally illuminated

airport wind cone
airport wind cone
airport wind cone
Add to favorites
Compare this product


Characteristics

Domain
for airport
Other characteristics
with mast, internally illuminated
Throat diameter

18 in

Length

72 in

Description

25,000 hour rated LED's for extended life High visibility International orange powder coat suitable for the harshest environments Weathproof sealed bearings for smooth rotation and true wind readings Pre-wired for quick and easy installations Made with aluminum FEC's internally lighted windcone meets the FAA AC 150/5345-27 latest revision and ICAO Annex 14 design requirements. It is made of high strength, lightweight aluminum for durability in all environmental conditions. The hinged base on FEC's windcone allows for easy accessibility when maintenance is needed. The base and pole are powder coated orange for high visibility and long-lasting protection. Windcone can be installed on any surface. Optional mounting base is available for structural connections. ELECTRICAL CHARACTERISTICS (LED): Operating voltage 120V-277V, 50/60Hz 42 watts Operating temperature: -13F to 122F (-25C to +50C) Floodlights:(2) 18 watts, PAR 38 LED Spotlight (1200 lumens per lamp) w/ standard E27 screw in base, lifespan of up to 50,000 hours Obstruction Light: 50,000+ hour rated LED's for extended life, 6 watts PHYSICAL CHARACTERISTICS: Height: 10' (3.048 m) from base to top Base: (4) 3/4" (19.05 mm) holes on a 7" (177.8 mm) bolt circle Shipping Weight: 55lbs. Custom sizes available
