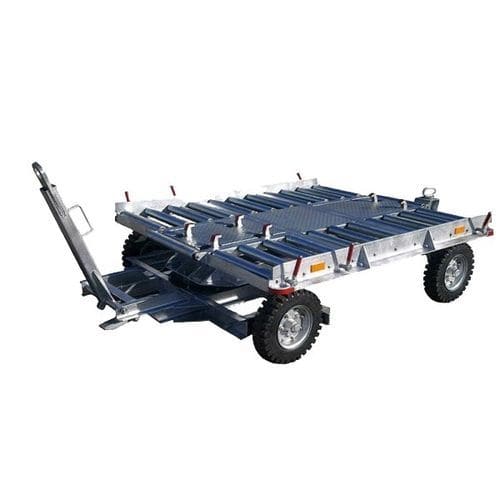

Container dolly FCD-1500
2-axlefor air cargofor airport

container dolly
container dolly
container dolly
container dolly
container dolly
container dolly
container dolly
Add to favorites
Compare this product


Characteristics

Type
container
Number of axles
2-axle
Other characteristics
for air cargo
Domain
for airport
Maximum load

1,500 kg
(3,307 lb)

Description

FCD – 1500 Container dolly is designed for transporting of containers LD-1, LD-2, LD-3 (with separete latching for each container) The structure of the FCD – 1500 dolly is built on two frames - a lower metal frame, which lies on four supports, and an upper swivel frame with rollers assembly - 24 pieces with bearings. The front axle of the trolley is swivel, the rear axle is fixed on the lower frame. Wheels 4.00-8 - superelastic. FDC-1500 dolly size: length - 3458mm, width - 1735mm. FDC-1500 platform size: length - 1810mm, width - 1735mm. Maximum movement speed: 25 km/h; Parking brake can be enacted by rising the drawbar The towbar, equipped with a spring-loaded finger,provides strict coupling and ensures safe transportation of cargo when connecting several trucks together. The wheel hub fixating mechanism is designed in special way to provide protection from wheel falling off in case of damaging the bearing. The bearing assembly is wear-resistant and is designed to work under high loads, including movement over uneven surfaces and over long distance. The trolley is equipped with safety elements in the corners, reflective elements and information plate. Protective covering of base parts - hot zinc.
