Characteristics

Function
quality, CAD, calculation, CAD/CAM, manufacturing, programming
Applications
for aeronautics, machining
Type
3D

Description

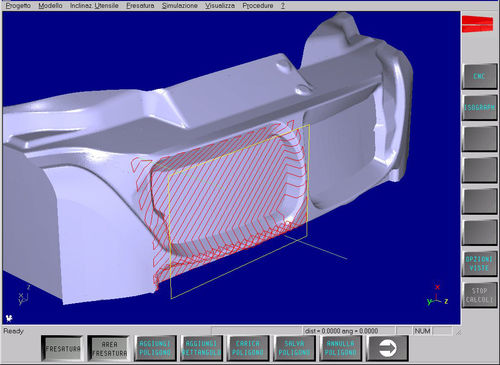

HiMill is the Fidia CAM 3D software for the manufacturing of moulds, dies, models and prototypes. It enables tool paths to be generated, from roughing out to super finishing, offering a wide choice of machining strategies starting from geometrically defined surfaces using CAD model as VDA-FS, IGES and CATIA format, ISO finishing programs or digitized surfaces. HiMill the workshop CAM HiMill is the software that produces tool paths for the milling of complex forms. Its simple and intrinsic approach adapts perfectly to the modern workshop while its solutions are expressly suited for complex and innovative technology such as that of High Speed.Thanks to its optional module HI-MILL is able to read clouds of points that describe the form of a physical object and are used for milling. This applies to clouds of points obtained by scanning with an analog tracer, a laser or using optical systems. A specific algorithm has been specially developed in order manage large quantities of data efficiently. Reverse engineering HiMill transforms the elementary descriptive data for an object, expressed by means of X, Y and Z co-ordinates, into a skin structure written in the standard STL format and which can easily be interpreted by the most widely used Reverse Engineering systems 3 axes + 2 easily programmable With machine tools equipped with rotary heads, it is extremely important to already be able to program the positioning of the tool axis in space during the tool path calculation phase. In this way, the milling enjoys all the advantages of this programming, namely: a better use of spindle power, an optimum tool yield, a high surface quality and the ability to machine undercut zones
