Digital EMS MY-EMS

single-enginefor aircraftfor ULM

Overview

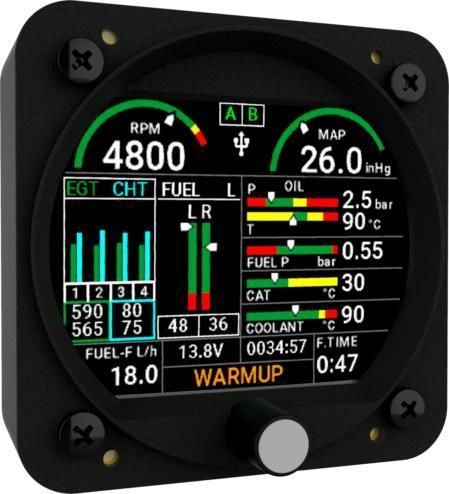

Designed from the experience of three different full-featured engine monitoring systems, My-EMS delivers a modern EMS within a traditional round instrument format. It is intended for pilots and light aircraft builders who prefer classic gauge mounting while requiring advanced engine monitoring. The unit fits a 3-1/8" (80 mm) cut-out and accepts probe connections directly at the instrument rear, eliminating external interface modules. Customizable graphic and audio alarms provide timely alerts while reducing distractions during critical flight phases.

Versions

• My-EMS Base — Cod. 671000
• My-EMS Plus — Cod. 671001
• My-EMS Pro — Cod. 671002
• My-EMS CRX — Cod. 681000 (compatible with Rotax 503, 582 and Vittorazi Cosmos)

Main features

• Displays RPM and MAP
• Oil pressure and oil temperature monitoring
• 4 CHT inputs and 4 EGT inputs
• Fuel pressure input
• CAT (Carburetor/AirBox Temperature) input
• Voltmeter
• 4 hour-meters
• 2 Peak Engine RPM memories
• Flight chronometer
• Local time and UTC time (GPS connection required)
• 2 inputs for remote switches
• 2 fuel level sensor inputs with calibration for capacitive and resistive senders
• Customizable graphic and audio alarms (including tone or vocal alerts)
• Easy software update via USB pen drive
• Alarms output

My-EMS Plus — Fuel computer

• Fuel computer functions: fuel flow, endurance, remaining fuel, burned fuel, range and reserve at destination
• Ability to activate up to 3 alarms for remaining fuel, time to empty and tank balancing
• When a measured value drops below its setpoint the alarm is activated on display and/or audio output

My-EMS Pro — Data logger

• 100 hours Data Logger with 1 Hz sample rate
• Integrated Graphic Data Viewer and ability to export logged data via USB

My-EMS CRX
CRX is targeted at microlight and ultralight powered aircraft; it is compatible with Rotax 503, Rotax 582 and Vittorazi Cosmos engines and includes specific inputs for those applications.

Available wiring, probes and accessories
The instrument supports a range of dedicated probes and pre-wired cables: EGT probes, pre-wired EGT cables, OAT probe for CRX, CAT probe for Rotax airbox temperature, professional crimping tool, GPS receiver and other accessories.

Technical specifications

• Dimensions: 84 x 84 x 31.9 mm
• Standard mounting: 3-1/8" (80 mm)
• Weight: 235 g
• Powder painted aluminium case
• Operating temperature range: -20 °C to +70 °C
• Storage temperature: -30 °C to +80 °C
• Humidity max: 90% (without condensation)
• Supply voltage: 12–30 Vdc
• Power consumption: ~2 W
• Display: 3.5" TFT color LCD screen
• Display brightness: 1000 nits, adjustable
• GPS input: standard RS-232, data format NMEA-0183 (required sentences: $GPRMC and $GPRMB)
• USB: 1 USB port (USB 2.0) for software updates and data export
• Internal storage: 100 hours for datalogger (Pro)
