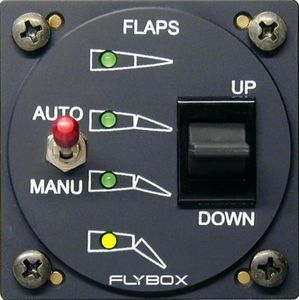

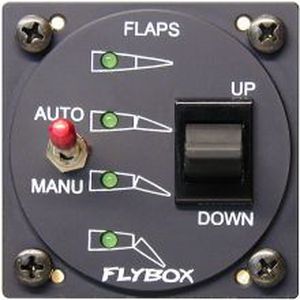

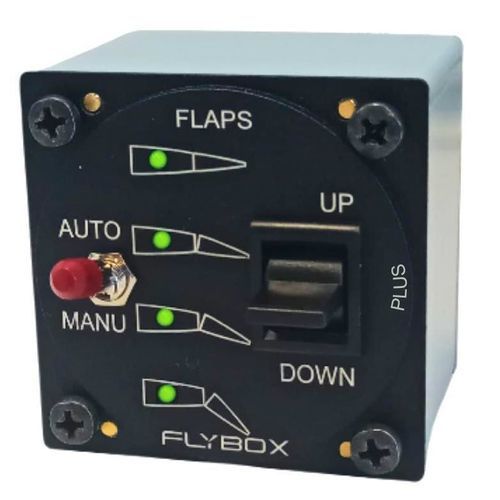

Flap control unit EFC57-PLUS

for aircraft

Overview
The flap position is managed by the control unit and the actuator. The Electronic Flap Controller EFC57-PLUS allows selection of the desired flap position while the actuator performs the movement. Compared with the previous EFC57-P version, EFC57-PLUS provides increased power output, short-circuit protection and simplified software updates via USB stick.

Main features

• Simple and precise control of flap position.
• Working mode: select one of four user-stored positions; the EFC automatically moves the flaps to the exact position.
• LED indicators display the current flap position or, during movement, the target position being reached.

Product code
Cod. 103210

Components / Optionals

• 105000 - Linear Actuator (Only sold in combination with a Flap Controller)
• 104000 - Position Transducer

Technical specifications

• Frontpanel dimensions: 60.0 x 60.0 mm, 2 1/4" round hole
• Depth: 52 mm
• Weight: 125 g
• Input voltage: 10 ~ 30 V
• Current consumption: 80 mA
• Maximum motor supply current: TBD
• Safety switch for manual flap operation in case of electronic failure
• Transducer input: 1 to 5 kΩ
• Operating temperature range: -20 ~ +70 °C
