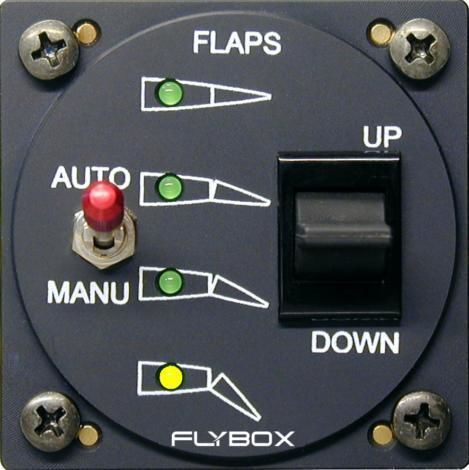

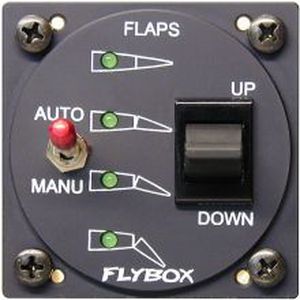

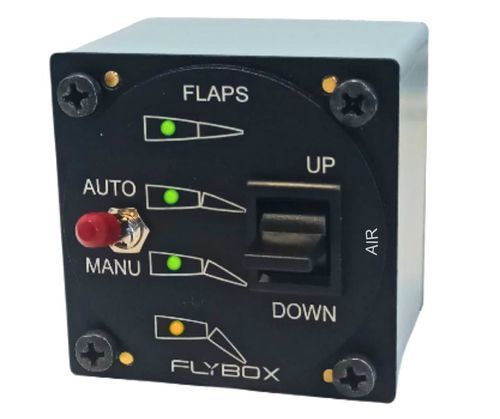

Flap control unit AIR EFC

for aircraft

Overview
The AIR EFC is an Electronic Flap Controller that manages flap position via a Control Unit and an Actuator. The control unit enables selection and storage of desired flap positions while the actuator executes the commanded movement. The system continuously monitors aircraft indicated airspeed (IAS) to inhibit flap operation outside the speed ranges permitted by the aircraft design.

Main features

• Automated control of flap position with simple user interface.
• User can store up to four flap positions; the EFC-P automatically moves the flaps to the selected stored position.
• Front-panel LEDs indicate current flap position or the target position while flaps are moving.
• Continuous monitoring of indicated airspeed (IAS) to prevent flap operation outside manufacturer-permitted speed ranges.

Product information
Cod. 103110

Components / Optionals

• Linear Actuator — Cod. 105000 (only sold in combination with a Flap Controller)
• Position Transducer — Cod. 104000

Technical specifications

• Frontpanel dimensions: 60.0 x 60.0 mm, 2 1/4" round hole
• Depth: TBD
• Weight: TBD
• Input voltage: 10 ~ 30 V
• Current consumption: 80 mA
• Maximum motor supply current: TBD
• Safety switch for manual flap operation in case of electronic failure
• Transducer input: 1 to 5 Kohm
• Operating temperature range: -20 ~ +70 °C
• IAS range: 30 - 500 Kp/h
