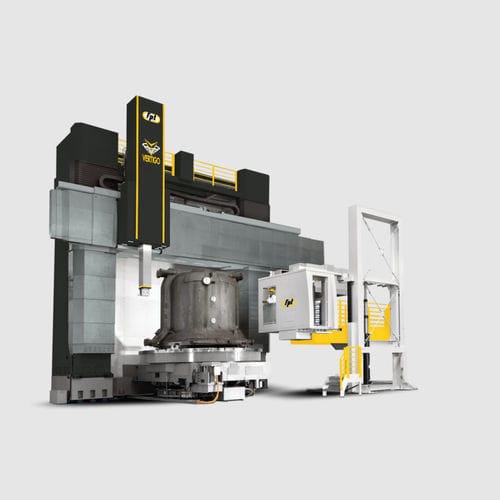

Vertical turning machine Vertigo

multi-function

Overview
The Vertigo range offers an integrated vertical turning center that combines large-format turning power with milling-class precision and centesimal tolerances. The platform merges turning, milling and grinding technologies in a single machine architecture to deliver consistent geometric control and uniform performance across the entire working area.

Key technologies

• HTS hydrostatic table (Hydrostatic Turning System) — load-controlled support and rotation system maintaining constant stiffness regardless of workpiece weight.
• Intelligent hydrostatic tilter bearings — automatic imbalance compensation with self-adaptive parameters.
• Turning spindle with hybrid transmission — combined planetary + parallel gearbox and high-torque liquid-cooled built-in motor.
• Dual Drive C-axis — high-stiffness transmission with full backlash compensation and high bidirectional dynamics.
• Direct Drive milling spindle kinematic — in-axis power transmission without mechanical gear stages to reduce wear and thermal effects.
• Hybrid axis architecture — hydrostatic technology where required combined with high-precision roller guideways for improved dynamics and efficiency.
• X-axis with dual pinion and rack (Dual Drive) — increased stiffness and positioning accuracy versus conventional screw systems.
• ACS — Active Crossbeam System for active geometry control and maintained alignment under all conditions.

Applications / Industries

• Energy
• Oil & Gas
• Naval

Technical specifications

• Model: Vertigo
• Type: Large-format vertical turning center integrating turning, milling and grinding
• Max. turning diameter: 3,200 mm / 10,000 mm
• Max. turning height: 3,000 mm / 6,000 mm
• Max. load: 10 Ton / 150 Ton
• Vertical traverse stroke: 1,400 mm / 5,000 mm
• Vertical RAM stroke: 1,600 mm / 3,100 mm
• Key technologies: HTS hydrostatic table, intelligent hydrostatic tilter bearings, hybrid turning spindle, Dual Drive (C and X axes), Direct Drive milling spindle, ACS
