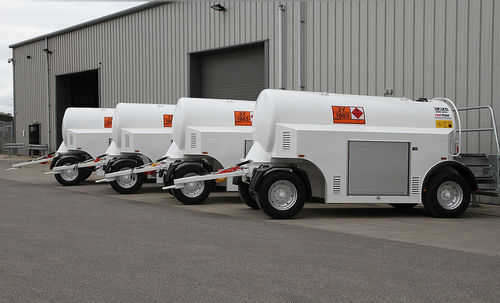

Towed fuel bowser

avgasJet A-1electric

Overview
Fully bunded mobile refuelling unit for airfields
6,000 litre mobile refuelling bowser for airfields

Key Features

• 110% bunded in accordance with Environment Agency PPG2 (Pollution Prevention) Guidelines
• For use with Avgas and Jet A-1
• Stainless steel inner tank
• Double skinned integrally bunded construction
• Built in accordance with CAA guidelines for aircraft re-fuelling equipment
• High security specification
• Industry leading warranty

Standard Specification
Specification includes:

• Tough, fully baffled stainless steel double skin tank
• Rear access steps to manway / inspection hatch
• Lockable cabinet housing pumping equipment with roller shutter door
• Lockable cabinet housing dispensing equipment with roller shutter door
• Overfill prevention system
• Integral steel chassis with spring steel suspension
• Fixed rear axle, front axle on turntable for steering, with 385/65/R22.5 wheels and tyres
• Air and hydraulic operated brake system with manual handbrake
• Fitted with an automatic suction breather and pressure relief valve
• Shot blasted to SA 2.5 and painted in 2-pack polyurethane finish
• Pressure vacuum vent/turnover valve

Dispensing equipment

• Piusi EX50 12Vdc electric driven vane pump
• Flow rate approximately 45Lpm*
• Facet VF-22SB filter vessel tested to EI/API 1581 (5th edition)
• FG-0-612-2 filter cartridge to EI/API 1583 (4th edition) (particle & water blocking, 0.5 micron)
• Differential pressure gauges
• Water drain on filter base
• Fuel Proof spring rewind hose reel with 20m x 1” Elaflex aviation fuel hose
• ZVF25 high flow manual nozzle, complete with earth lead and dust cap
• 20m earth bonding reel
• Offset fill pipe (2” BSP connection)

Technical Information (table)
Length: 7201 mm
Width: 2299 mm
Height: 2711 mm
Empty Weight: 5000 kg
Full Weight: 10220 kg
Maximum Hose Length: 30 m

Technical Specifications

• Capacity: 6,000 litre mobile refuelling bowser
• 110% bunded construction compliant with Environment Agency PPG2
• Suitable for Avgas and Jet A-1
• Stainless steel inner tank; double skinned integrally bunded
• CAA-compliant aircraft refuelling equipment
• Integral steel chassis with spring steel suspension
• Axles and steering: Fixed rear axle; front axle on turntable for steering; 385/65/R22.5 wheels and tyres
• Brakes: Air and hydraulic operated system with manual handbrake
• Ventilation: Automatic suction breather and pressure relief valve; pressure vacuum vent/turnover valve
• Finish: Shot blasted to SA 2.5 and painted in 2-pack polyurethane
• Dispensing pump: Piusi EX50 12Vdc (approx. 45 L/min)
• Filtration: Facet VF-22SB vessel (EI/API 1581) with FG-0-612-2 cartridge (EI/API 1583, 0.5 micron)
• Hose reel: 20 m x 1” Elaflex aviation hose; maximum hose length 30 m
• Nozzle: ZVF25 high flow manual nozzle with earth lead and dust cap
• Additional: Overfill prevention system; lockable pump and dispensing cabinets; rear access steps to manway/inspection hatch
