Fuel tank

rigidfor aircraftstainless steel

Product overview

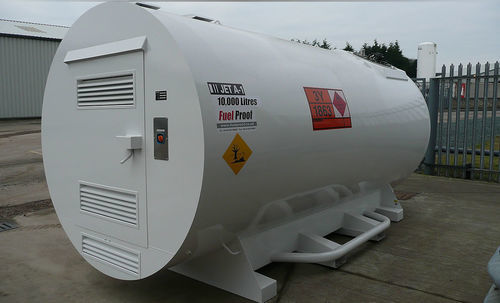

10,000 litre bulk aviation fuel storage tank. Industry leading bulk storage and refuelling system for Avgas & Jet A-1.

Key Features

• Horizontal double skinned integrally bunded construction comprising of: Grade 304 stainless steel inner tank with bolted manway access. Heavy duty mild steel outer bund. 110% tank capacity
• Strong steel base with integral fork lift pockets; 40mm fall to sump low point
• Built in accordance with CAA guidelines for aircraft re-fuelling equipment
• 2 point lifting eyes suitable for lifting and moving empty tank
• Fill point & pump cabinet with anodised aluminium roller shutter door or heavy hinging steel door
• Fill point – 2” BSP stainless steel with Self Climat OPD Overfill Valve DN50 type NT- Jet A1 / Avgas
• Suction line dip tube for fuel delivery – 1½” grade 304 stainless
• Unitop hydrostatic tank level contents gauge
• 1” stainless steel sump draw line, with sump pump in cabinet for fuel sampling
• Sample draw off point, inspection glass
• Shot blasted to SA 2.5 and painted in 2-pack polyurethane finish (standard colour White)
• Suitable for use with Avgas and Jet A-1

Standard Specification

• Pumptronics Series C Mechanical fuel dispensing unit with stainless steel body and hand re-set mechanical flow meter; 80 to 90 litre/min flow rate*, ATEX Exd IIB T4 230V 50Hz motor. Not approved by UK Weights and Measures. Stainless steel pump internals with full air separation. Approved to EN13617 (ATEX)
• Facet VF-22SB filter vessel tested to EI/API 1581 (5th edition). Differential pressure gauge & water drain
• FG-0-612-2 filter cartridge to EI/API 1583 (4th edition) (particle & water blocking, 0.5 micron)
• Spring retractable hose reel, with 20m x 1” Elaflex hose to EN 1361:1997
• ZVF25 manual trigger with integral filter, complete with earth lead and dust cap
• 20m retractable earth bonding reel

Optional Extras

• Floating suction arm (recommended best practice) (50mm NB Sch 5 304L stainless tube)
• Self-loading pump, centrifugal stainless steel, 2.2kW 230V Exd IIB T3 motor
• Side access / inspection steps – 10,000L
• ATEX Cabinet Light - Zone 1 HDL 100 - Ex emb IP66/67 T4/T5 Gas & Dust
• Dry break coupling on fill point
• Nozzle earth lead
• Nozzle dust cap (may interfere with stowing of the nozzle in the holder)

Technical Information (table)
Length: 4800 mm
Width: 2300 mm
Height: 2600 mm
Empty Weight: 2400 kg
Full Weight: 10700 kg
Maximum Hose Length: 20 m

Caractéristiques / spécifications techniques

• Length: 4800 mm
• Width: 2300 mm
• Height: 2600 mm
• Empty Weight: 2400 kg
• Full Weight: 10700 kg
• Maximum Hose Length: 20 m
