Fuel tank

avgasJet Arigid

Product overview

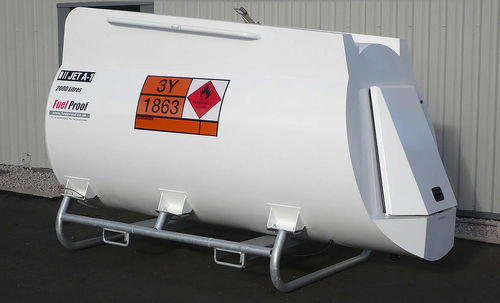

Fully bunded stainless steel fuel storage tank designed for Avgas and Jet A-1. Suited to small-to-medium refuelling operations such as airfields, flying clubs and remote fueling points.

Key features

• 110% bunded design with stainless steel inner tank
• Steel outer construction with integrated rollover protection frame and lifting eyes
• Compliance with current regulations and built to CAA guidelines
• Lockable service cabinet for dispensing and filtration equipment
• Suitable for Avgas and Jet A-1

Standard specification

• Fully baffled stainless steel inner tank with bolted manway access (Collins Youldon manway with pressure/vacuum vent and turnover valve)
• Stainless steel outer construction incorporating rollover protection frame and lifting eyes
• Lockable cabinet with roller shutter for fuel dispensing and filtration equipment
• Galvanised tubular steel base
• GPI HP-100 dual-flow aluminium-bodied hand pump (approx. 80 L/min)
• Rotary tank contents gauge
• Spring-rewind earth bonding reel with controlled retraction
• GPI HP-100 sump pump and GPI HP-100 priming/backup pump
• Stainless steel spring-rewind hose reel with 11 m x 1" Elaflex HD25 aviation refuelling hose (max hose length 12 m)
• Fill Rite 901 1½" flow meter with non-resettable totaliser
• ZVF 25 non-auto aviation fuel dispensing trigger with mesh strainer

Optional extras

• High-flow diesel-engined centrifugal pump with electric start
• 12 V ATEX-approved fuel pump, flow up to 57 L/min
• GPI HP-100 aluminium-bodied dual-action hand pump (alternative)

Technical information
Length: 2331 mm
Width: 1309 mm
Height: 1748 mm
Empty weight: 805 kg
Full weight: 1605 kg
Maximum hose length: 12 m

Technical specifications

• Capacity: 990 litres (product capacity)
• Construction: Stainless steel inner tank; stainless steel outer construction
• Bunded: 110% bunded containment
• Manway: Bolted access; Collins Youldon manway with pressure/vacuum vent and turnover valve
• Pumps: GPI HP-100 primary, sump and priming/backup pumps; optional high-flow diesel centrifugal pump or 12 V ATEX pump
• Dispensing: Fill Rite 901 flow meter with non-resettable totaliser; ZVF 25 non-auto dispensing trigger with mesh strainer
• Hose reel: Stainless steel spring-rewind, 11 m x 1" Elaflex HD25 aviation hose (max 12 m)
• Base: Galvanised tubular steel base
• Compliance: Built in accordance with CAA guidelines and compliant with current regulations
