Fuel tank

avgasJet Arigid

Product Overview

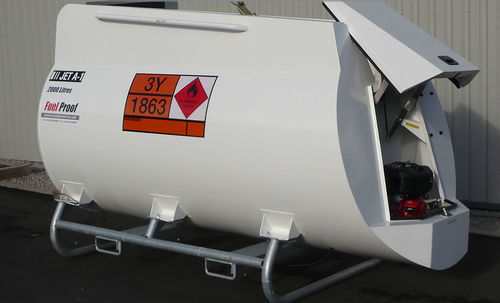

Fully bunded 2,000 L static aviation fuel storage tank suitable for Avgas and Jet A-1. Designed for small-to-medium refuelling operations at airfields, flying clubs and maintenance sites, and built to meet CAA guidance and applicable fuel storage regulations.

Key Features

• 110% bunded with a fully baffled stainless steel inner tank
• All-steel outer construction with rollover protection frame and lifting eyes
• Lockable cabinet with roller-shutter door for dispensing and filtration equipment
• Delivered compliant with current aviation fuel storage standards
• Suitable for Avgas and Jet A-1

Standard Specification

• Fully baffled stainless steel inner tank with bolted manway access
• Stainless steel outer construction incorporating rollover protection frame and lifting eyes
• Lockable cabinet with roller shutter door for access to fuel dispensing and filtration equipment
• Tough galvanised tubular steel base
• GPI HP-100 dual-flow aluminium bodied hand pump (80 litres/min flow rate)
• Rotary tank contents gauge
• Spring rewind earth bonding reel with controlled retraction
• Collins Youldon manway for inspection complete with pressure/vacuum vent and turnover valve
• GPI HP-100 sump pump
• GPI HP-100 priming / backup pump
• Stainless steel spring rewind hose reel, 11 m x 1" Elaflex HD25 aviation refuelling hose
• Fill Rite 901 1½" flow meter complete with non-resettable totaliser
• ZVF 25 non-auto aviation fuel dispensing trigger with mesh strainer

Optional Extras

• High-flow diesel-engined centrifugal pump with electric start
• 12 V ATEX-approved fuel pump, flow rate up to 57 litres/min
• GPI HP-100 aluminium-bodied dual-action hand pump

Technical Information
Length: 2915 mm
Width: 1489 mm
Height: 1817 mm
Empty Weight: 1025 kg
Full Weight: 2625 kg
Maximum Hose Length: 12 m

Technical Specifications

• Capacity: 2,000 litres
• Length: 2915 mm
• Width: 1489 mm
• Height: 1817 mm
• Empty Weight: 1025 kg
• Full Weight: 2625 kg
• Maximum Hose Length: 12 m
• Inner tank: fully baffled stainless steel
• Designed for Avgas and Jet A-1
