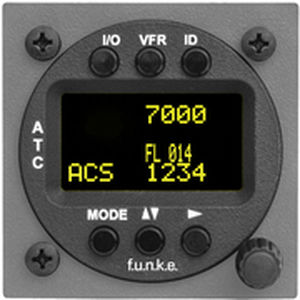

Mode S transponder TRT800

for aircraft

Full featured, EASA/FAA certified Class 1 transponder and certified for VFR and IFR operation 4-line OLED display shows active and stand-by code, operating mode, flight level and flags Remote Control Unit TRT800RT available Operating Modes: Mode A/C, Mode S Extended Squitter, connection to GPS receiver with adapter cable, ADS-B ready (certification in accordance with ETSO-C166b pending) Integrated altitude encoder up to 35,000 ft Configurable energy saving mode especially for gliders Includes aircraft adapter with address memory for selection of ICAO 24-bit aircraft address, aircraft type and flight ID (for Mode S operation), memory for 8 data sets The TRT800H-OLED is a standard transponder in 2¼” standard housing for all applications in general aviation from ultralight aircraft to gliders and piston engine aircraft. It offers the classical A/C modes of operation plus full Mode S support including the future-oriented extended squitter function. Advantages of this unit are an attractive price, small dimensions and a built-in altitude encoder without heating requirements. These features help to reduce installation effort, cost and weight. The unit provides the required 25 ft altitude resolution. The TRT800H-OLED may be used up to 35,000 ft actual operating altitude (not to be confused with maximum operating altitude) and a maximum true airspeed of 250 kn (463 km/h). Using the Remote Control Unit TRT800RT the TRT800H-OLED can be fully remotely controlled. Especially glider pilots will appreciate the energy saving mode.
