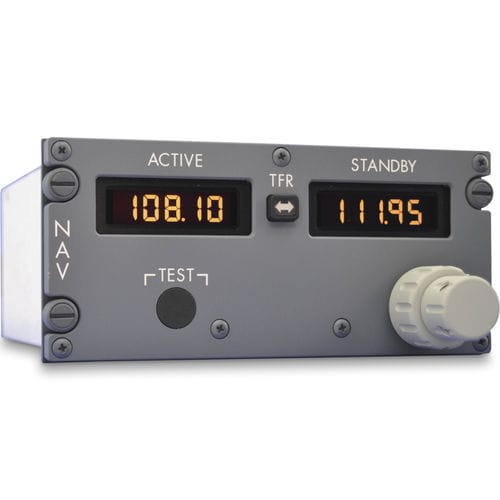

The Gables G7500 Series VHF Nav is certified by Boeing for installation on the B737.
Description
Provides tuning control of VOR, ILS, DME receivers
Provides internal fail monitoring and recording capability
Liquid spill-proof design
Modular construction contributes to economical maintenance
Additional information
Weight -
2.45 pounds (max)
Frequency Range -
The VHF NAV frequency range is from 108.00 to 117.95 MHz using 50 kHz spacing
Power -
Power – 115VAC@400Hz. 4w max, Panel & LCD Lighting 5VAC variable, 9w max
Connectors -
J1 Mating: BACC63CB22-55SN, or equivalent 55 pin connector, J2 Mating: BACC63CB22-55S8, or equivalent 55 pin connector
Color -
Front Panel – Non-reflective Gray FEDSTD 595b36118, Front Panel Markings –White FEDSTD 595b37875 (FuturaMediumfont), Knob –Light GrayFED STD 595b36440, PushButtons –Non-reflectiveBlack FEDSTD 595b37038
Certification - Aircraft -
B737-NG
Certification - Regulatory -
TSO-C104, TSO-C36, TSO-C40c, TSO-C66c
Calculated MTBF (op hours) -
22,000
Dimensions -
2.610 (height) x 5.735 (width) x 5.5 (depth) inches, excluding rear connectors
