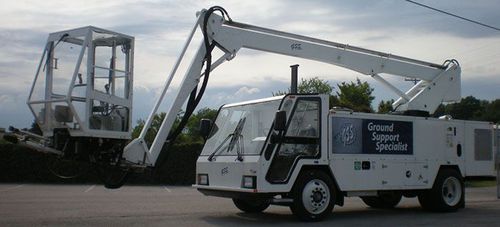

Aircraft de-icing vehicle GS1400SG series
sprayerself-propelled

aircraft de-icing vehicle
aircraft de-icing vehicle
aircraft de-icing vehicle
aircraft de-icing vehicle
aircraft de-icing vehicle
aircraft de-icing vehicle
aircraft de-icing vehicle
aircraft de-icing vehicle
Add to favorites
Compare this product


Characteristics

Applications
for aircraft
Type
sprayer
Other characteristics
self-propelled
Tank capacity

800 gal, 1,400 gal

Description

Dedicated Custom Chassis 800, & 1400 Gallon Capacity (Type I & IV) Mini-Max “Quick Heat System” 980,000 BTU 12V Joystick Controls Single Diesel Engine (Swing out Module) Designed for commuter & narrow body aircraft - Up to 34'6" Working Height De-Icing Fluid Pump Myers I2C-20 Anti-icing Fluid Pump Hardi Rotary Pump 363 Fluid Delivery (De-Ice) 20-30GPM(76-114L) / 150 psi Fluid Delivery (Anti-Ice) 20 GPM (76L) / 40 psi Air Delivery (De-Ice) 400 CFM @ 10 PSI 32 Lb./Min. @ Mach 0.89 Quick Heat System Pre-Heat to Deice Time 12 VDC. 980,000 BTU Approx 20 min. Basket Enclosed Manually Operated Chassis: Custom to Spec. Drive System Hydrostatic / Dynamic Braking Engine Perkins 1104TD Diesel Fuel Diesel / 50 gal. (189 L) Maximum Speed 20 mph (32km/hr) Max Deicing Speed 3 mph (5km/hr) Aerial Device: Articulating Boom Length 30 Ft. 7 In. (9.3 m) Width 7 Ft. 8 In. (2.3 m) Wheelbase 11 Ft. 3 In. (3.4 m) Height (Boom Retracted) 11 Ft. 2 In. (3.4 m) GVW Empty Tanks 14400 lbs. (6532 kg) GVW Full Tanks 25,700 lbs. (11658 kg)Cal Safety Features Emergency stops in cab and basket. Emergency hydraulic pump control in basket and ground control station. Boom control in basket and ground control station. High Speed Cutout When Boom is Raised. Driver/Passenger seat belts. Caterpillar 2.2 Diesel Cummins 3.3 Diesel Hardi 363 De-Icing Fluid Pump Type IV fill system In Cab Flow Meters Fire extinguisher mounted on unit Full body safety harnesses Dual Heater Option Frost Gun Remote Tank Level Gauges
