Maintenance lifting platform GS600
scissorfor aircraft

maintenance lifting platform
maintenance lifting platform
maintenance lifting platform
Add to favorites
Compare this product


Characteristics

Function
maintenance
Technology
scissor
Applications
for aircraft
Height

16'00" (4.9 m)

Description

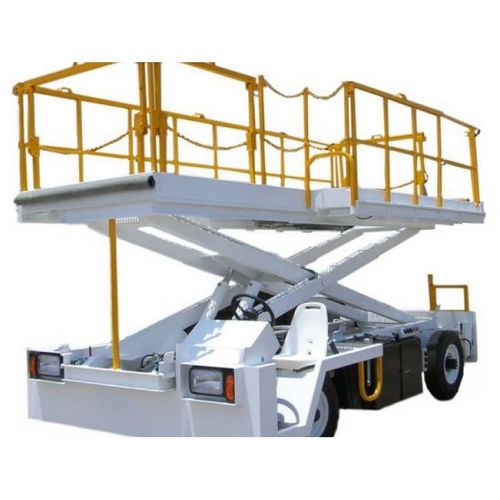

The GS600 is a purpose built chassis mounted maintenance lift designed to meet a variety of needs in airline ground support applications. The GS600 combines a proven scissor arms and platform with a rugged custom built chassis. Key Features: Platform Height 16 ft Pendant Control Box Descent Alarm Front & Rear Stabilizers Power Train Options EPA/CARB Certified Platform Height Elevated 16 ft Platform Height Lowered 3 ft. 6 in. Platform Railing Height 42 in. Platform Size 84.0 x 168.0 in. Platform Capacity 2000 lbs. GVWR 10,500 lbs Max Vehicile Speed Adjustable to 25 Mph Wheel Base 101.0 in. Engine Perkins 404D-22T/CAT 2.2T Advertised BHP 60hp @ 2800 rpm Peak Torque 190 lb.ft.@ 1800 rpm Cooling System 120 deg F. Ambient Transmission Ford C6 Electrical System 12V, Neg Ground Steering Hydrostatic Front Axle Dana 70-DF Front GAWR 5,700 lbs. Rear Axle Dana 70-B Rear GAWR 7,500 lbs. Gear Ratio 7.17 Wheels 16 in. x 6 in. Tires 225/75R16 / Pending Brakes Front Disc, Rear Drum Fuel Tank 28 Gallon Standard Features: Fold Down Platform Rails Movable, Removable Platform Control Box Scissor Maintenance Prop Descent Alarm Front and Rear Hydraulic Stabilizers

Catalogs

GS600
GS600
2 Pages
