Professional UAV GD-125X RTF

mappingaerial photographyinspection

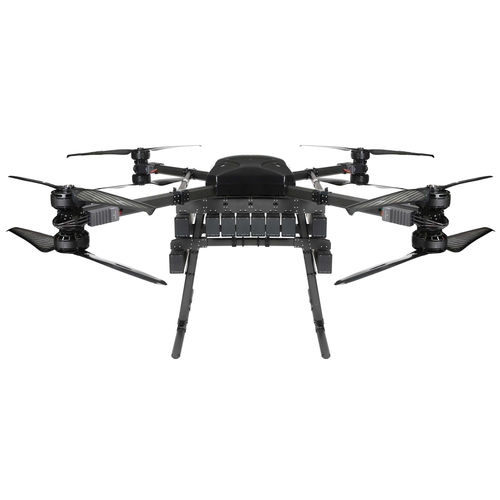

Introducing GD-125X: The Heavy-Lift Cargo Drone GD-125X, Gryphon Dynamics' heavy-lift cargo drone, features a durable Hyper carbon frame, powered by a high-voltage Lipo battery for stable flights up to 25 minutes carrying 50kg loads, with a maximum speed of 14 m/s. Its coaxial propulsion system ensures secure landings, making it ideal for industries like pharmaceuticals, firefighting, forestry, and construction. Ultimate Cargo Drone Solution Constructed from aircraft-grade materials, GD-125X's 70mm booms and connectors offer exceptional strength and durability. The unique octagonal boom design, reinforced with high-strength CFRP, maintains resilience while being lightweight. Its folding structure facilitates easy transportation and storage, with assembly/disassembly taking <5 mins. Folding Arms GD-125X's rapid folding/unfolding mechanism allows swift preparation for flight. The lock knob system minimises vibration for rigid arm assembly. Unfolded dimensions: 2059mm x 2059mm x 1127mm Folded dimensions: 1170mm x 919mm x 1127mm (excluding propellers). Battery Canister System The battery canister system safeguards batteries from external elements, with each canister housing a 45.6V, 32A lithium-polymer battery. Easily attachable/detachable along the rail via a one-touch lever, it accommodates 8 or 10 battery containers, featuring an external balance port for voltage monitoring. Propulsion System GD-125X's coaxial (X8) propulsion system, with two motors mounted vertically on each arm, maximises thrust relative to frame size. Ensuring redundancy and acting as a failsafe, it enables safe landings by utilising thrust from the opposite motor in case of failure.
