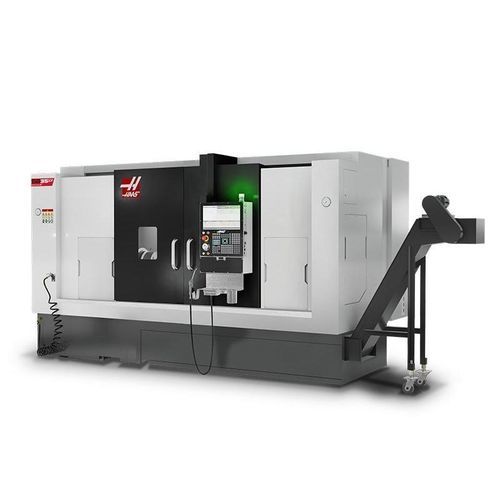

Horizontal turning machine SB-35LY

CNC3-axisinclined bed

Overview
The Haas SB-35LY is the long-bed version of the SB-35: a Y-axis CNC box-way lathe delivering high dynamic stiffness, strong load capacity and effective vibration damping for heavy turning applications. It combines traditional box-way construction with Haas control and service network support. Standard capacities include a 12 in (305 mm) chuck, A2-8 spindle nose and 3.5 in (90 mm) bar capacity.

Key Features

• BMT65 turret with 12 stations (supports live tooling)
• Hardened, precision ground box ways
• Hand-scraped Turcite-B slideways
• 30° slant-bed with 30° Y-axis wedge angle for rigid cutting
• Programmable steady rest provision

Important Notes

• NOTE: The SB-35LY is not compatible with the Haas Bar Feeder and is not available with a parts catcher.
• ATTENTION: The steady rest provision is not removable; this limits the minimum distance between centers. Refer to the machine layout drawing for details.

Capacities
Chuck Size: 12.0 in | 305 mm
Max Part Swing: 23.6 in | 600 mm
Max Cutting Diameter (with BMT65 turret): 12.00 in | 305 mm
Max Cutting Length (varies with workholding): 47.3 in | 1200 mm
Bar Capacity: 3.50 in | 90 mm
Between Centers (max): 58.8 in | 1493 mm

Travels
X Axis: 8.10 in | 206 mm
Y Axis: ± 2.0 in | ± 50 mm
Z Axis: 49.80 in | 1265 mm

Feedrates
Rapids on X: 472 ipm | 12.0 m/min
Rapids on Y: 283 ipm | 7.2 m/min
Rapids on Z: 787 ipm | 20.0 m/min

Axis Motors / Thrust
Max Thrust X: 7780 lbf | 34607 N
Max Thrust Y: 4490 lbf | 19972 N
Max Thrust Z: 7780 lbf | 34607 N

Spindle
Spindle Nose: A2-8
Max Rating: 40.0 hp | 29.8 kW
Max Speed: 2500 rpm
Max Torque: 425.0 ft-lbf @ 325 rpm | 576.0 Nm @ 325 rpm
Draw Tube Bore ø: 3.58 in | 91 mm
Spindle Bore ø: 4.13 in | 105 mm

Main Spindle C Axis
Max Speed: 60 rpm
Max Rating: 5.0 hp | 3.7 kW
Positioning (±): 0.01 °
Brake Diameter: 13.9 in | 353 mm
Brake Holding Torque: 250 ft-lbf | 339 Nm
Control Type: Interpolated Motion and Positioning

Tailstock
Taper: MT5
Hydraulic Quill Travel: 4.7 in | 120 mm
Travel: 39.4 in | 1,000 mm

Turret
Number of Tools: 12 Stations
OD vs ID Tools: Any Combination (will vary with turret)
Boring Bar Rear Clearance (from back of turret): 2.00 in | 51.0 mm

Live Tooling
Max Speed: 4000 rpm
Tooling: BMT65

General
Coolant Capacity: 100 gal | 379 L

Air Requirements
Air Required: 4 scfm @ 100 psi | 113.0 L/min @ 6.9 bar
Inline Air Hose: 3/8 in
Air Pressure Min: 80 psi | 5.5 bar

Electrical Specification
Drive System: Direct Speed, Belt Drive
Spindle Power: 40.0 hp | 29.8 kW
Input AC Voltage (Low): 220 VAC (3 Phase), Full Load Amps (Low): 70 A
Input AC Voltage (High*): 440 VAC (3 Phase), Full Load Amps (High*): 35 A

Shipping Dimensions (approx.)
Domestic / Export Pallet: 214.5 in x 90.5 in x 99.0 in | 545 cm x 230 cm x 252 cm

Technical specifications

• Model: SB-35LY
• Chuck Size: 12 in (305 mm)
• Bar Capacity: 3.5 in (90 mm)
• Max Spindle Speed: 2500 rpm
• Spindle Power: 40 hp (29.8 kW)
• Max Torque: 425 ft-lbf (576 Nm) @ 325 rpm
• Spindle Nose: A2-8
• Turret: 12-station BMT65 (supports live tooling)
• Live Tooling Max Speed: 4000 rpm
• Travel X / Y / Z: 8.10 in / ±2.0 in / 49.80 in (206 mm / ±50 mm / 1265 mm)
• Rapid X / Y / Z: 472 / 283 / 787 ipm (12.0 / 7.2 / 20.0 m/min)
• Coolant Capacity: 100 gal (379 L)
• Air: 4 scfm @ 100 psi (113 L/min @ 6.9 bar)
