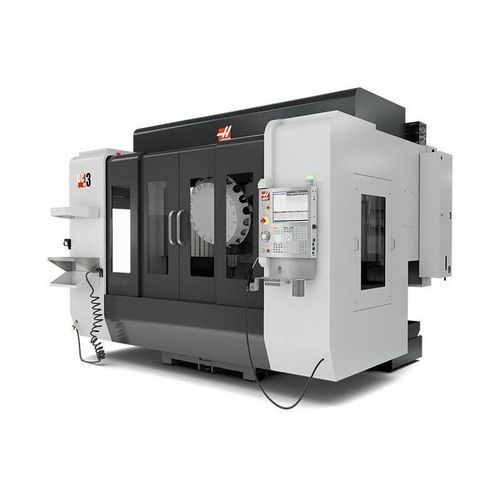

3-axis machining center DC-3/40

verticalfor the aerospace industryfor large workpieces

Overview
The DC-3/40 is a gantry-style drill/tap machine with 78.7 in / 2000 mm of X-axis travel to accommodate long, narrow parts or high-density production setups. The gantry-style spindle head travels in the X and Z axes, while the table travels in Y and is fully supported along its length for heavy loads. The machine is supplied with a 10,000 rpm CT40 spindle and a high-speed turret-style 20-tool changer. Optional 12,000 rpm or 15,000 rpm spindles are available.

Applications
Suitable for construction, automotive and aviation industries; capable of processing parts over 2 m long and 0.5 m wide, including long extrusions, steel channel, angle iron and pipe.

Key Features

• 78.7 in / 2000 mm X travel for long parts and high-density setups
• 10,000 rpm CT40 spindle (12,000 rpm or 15,000 rpm optional)
• High-speed turret-style tool changer, 20-tool capacity
• Rear chip discharge with front chip flush for efficient chip management

Machine Description
Gantry-style spindle head moves in X and Z; table moves in Y and is fully supported along its length to handle heavier loads. Turret-style tool changer and optional high-speed spindles reduce cycle times in high-production environments.

Travels / Dimensions (selected)
X Axis: 78.70 in / 2000 mm
Y Axis: 19.70 in / 500 mm
Z Axis: 11.80 in / 300 mm
Spindle Nose to Table (~ max): 17.7 in / 450 mm
Spindle Nose to Table (~ min): 5.9 in / 150 mm

Spindle (selected)
Max Rating: 15.0 hp / 11.2 kW
Max Speed: 10000 rpm (12k or 15k optional)
Max Torque: 52.0 ft-lbf @ 3000 rpm / 70.5 Nm @ 3000 rpm
Drive System: Inline Direct-Drive
Taper: CT40
Bearing Lubrication: Grease Packed
Cooling: Liquid Cooled

Table (selected)
Length: 82.7 in / 2100 mm
Width: 19.7 in / 500 mm
T-Slot Width: 0.630 in / 16 mm
T-Slot Center Distance: 3.94 in / 100 mm
Number of Std T-Slots: 5
Max Weight on Table (evenly distributed): 1323 lb / 600 kg

Feedrates
Max Cutting: 1100 ipm / 27.9 m/min
Rapids on X: 1200 ipm / 30.5 m/min
Rapids on Y: 1400 ipm / 35.6 m/min
Rapids on Z: 1400 ipm / 35.6 m/min

Tool Changer (selected)
Type: Turret
Capacity: 20 tools
Max Tool Diameter (full)**: 4.3 in / 110 mm
Max Tool Diameter, Large (adjacent empty)**: 6.3 in / 160 mm
Max Tool Length (from gage line): 7.90 in / 200 mm
Max Tool Weight: 11.0 lb / 5.0 kg
Tool-to-Tool (avg): 1.50 s
Chip-to-Chip (avg): 2.50 s

Tapping
Max Tapping Speed: 5000 rpm

General / Utilities
Coolant Capacity: 66 gal / 250 L
Air Required: 4 scfm @ 100 psi / 113.0 L/min @ 6.9 bar
Inline Air Hose: 3/8 in
Air Pressure Min: 80 psi / 5.5 bar

Notes
* All specifications listed are for the standard machine configuration. Optional equipment may change the machine’s specifications. Optional high-performance spindles may have different power requirements. ** Optional tool changers may have different max tool size; extra-large tools may require adjacent empty pockets.

Technical specifications

• Model: DC-3/40
• Machine type: Gantry-style drill/tap center, 3-axis (gantry head X/Z, table Y)
• X travel: 78.7 in / 2000 mm
• Y travel: 19.7 in / 500 mm
• Z travel: 11.8 in / 300 mm
• Standard spindle: 10,000 rpm, CT40 (12k and 15k optional)
• Spindle power (max): 15.0 hp / 11.2 kW
• Tool changer: Turret-style, 20 tools
• Table size (L×W): 82.7 in × 19.7 in / 2100 mm × 500 mm
• Max weight on table (evenly distributed): 1323 lb / 600 kg
• Max cutting feedrate: 1100 ipm / 27.9 m/min
• Rapids (X/Y/Z): 1200 / 1400 / 1400 ipm
• Coolant capacity: 66 gal / 250 L
• Air requirement: 4 scfm @ 100 psi
• Standard features: rear chip discharge with front chip flush, fully supported gantry table travel
