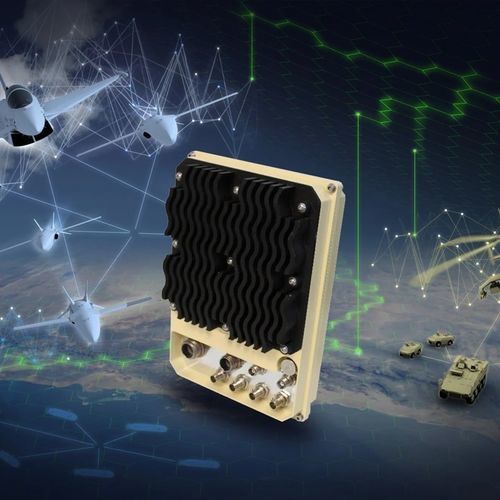

Data link system DL-6000

Overview
The DL-6000 is an IP-based high-data-rate video and telemetry communications link designed for airborne platforms (manned and unmanned) to deliver secure, high-definition video and telemetry to ground C3 centres. Multiple units can be networked to enable distributed payload/platform control and display. The terminal is a software defined radio (SDR) using a system-on-module (SOM) architecture, presented in a single optimized form factor for airborne use (mass, power, volume, heat dissipation and performance).

The challenge
Operational users require a line-of-sight (LOS) data link that guarantees long-range, secure and uninterrupted HD video and reliable telemetry for situational awareness and platform command across airborne, maritime and ground scenarios. Performance and assured reliability over extended ranges are essential for mission-critical operations.

Our solution
The DL-6000 provides secure HD video and telemetry transmission with networking capability for multiple radios, extended MTBF for operational reliability and optimisations specifically for airborne data-link use. As an SDR with SOM architecture it delivers adaptability to evolving operational requirements and full backwards compatibility with the HENSOLDT DL-5000 family, enabling integration into ground and airborne command-and-control systems.

Features

• Optimised for long-range LOS applications up to 250 km
• Consistent high bandwidth video streaming over Ethernet
• Up to 4 video inputs (2 × HD/SD + 2 × analog)
• H.264 and H.265 video compression
• Low-latency video design (<200 ms)
• Integrated encryption (AES-256)
• Modular encryption capability (customer-definable)
• Built-in ranging function (<100 m at 100 km)
• STANAG 4586 compliant management interface
• COMSEC/TRANSEC support

Benefits

• Extended operational range across mission zones
• Hardware reliability for high mission readiness (extended MTBF)
• Adaptive, augmentable architecture for future upgrades
• High data throughput in challenging operational environments
• Ease of integration with direct interfacing to onboard subsystems
• Robust anti-jamming and interference-resistant technology
• Data protection via standard or customised encryption
• GPS-free antenna positioning
• Alternative positioning using slant-range determination in GPS-deprived environments
• Free from EU/USA export controls

Technical specifications

• Product type: IP-based high data and video communications link (video and data terminal)
• Model name: DL-6000
• Range: Optimised for LOS up to 250 km
• Video inputs: Up to 4 (2 × HD/SD + 2 × analog)
• Video compression standards: H.264 and H.265
• Latency: <200 ms (low-latency video design)
• Encryption: Integrated AES-256; modular/customer-definable encryption options
• Ranging: Built-in ranging function (<100 m at 100 km)
• Standards: STANAG 4586 management interface; COMSEC/TRANSEC support
• Architecture: Software Defined Radio (SDR) with System on Module (SOM)
• Compatibility: Full backwards compatibility with the HENSOLDT DL-5000 range
• Platform optimisations: Mass, power output/consumption, volume, heat dissipation engineered for airborne applications
• Operational advantages: Networkable radios for distributed payload/platform control and display; extended MTBF for operational reliability
• Positioning: GPS-free antenna positioning and slant-range determination for GPS-deprived environments
• Security/export: Free from EU/USA export controls (as stated)
