Airport lighting IP54

UV LEDsurface

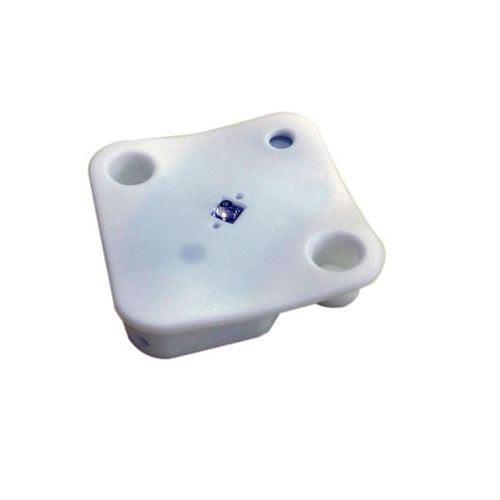

Hergy UVC LED module is design for air, static water and surface purification or disinfection. Compact size provide more possibility in equipment Narrow angle provide high radiant intensity to reduce operating time Light sensor detect the ambient light to shut down for eye protection Duty cycle provide sufficient radiant dose and longer lifetime LED Indicator show the module operating for eye protection IP54 protection provide more application in field Input 24 Vdc Length 64 mm 2.52” Width 64 mm 2.52” Height 12 mm 0.47” Weight 20 g 0.04 lbs Light sensor Default ( Automatically turn off when environment brighter than 10 lux ) Duty cycle Default ( 10 sec on / 50 sec off continuous cycle ) LED indicator Default ( Light on while operating ) Socket Pigtail Protection IP54 Installation M3 screw x 2pcs Operating temperature Depend on applications (*) Radiant Flux Output Radiant flux values are from photometric tests performed at 25°C initial.
