Overview
PC-DMIS FUSION is Hexagon's reporting and analytics application for PC-DMIS users, converting measurement data into real-time information, visualisation, insights and SPC analysis. Data synchronises automatically from PC-DMIS, and reports are launched from the PC-DMIS home screen with a single click.

Key concepts
PC-DMIS FUSION provides persona-based reports presenting relevant information to the CMM operator, metrology engineer, quality manager or production manager. It supports activities from reviewing a single shop-floor measurement to monitoring a process across shifts and performing statistical analysis on production populations. FUSION combines speed, simplicity and analytical depth to shift quality teams from reactive inspection to predictive quality management.

User experience
A modern, intuitive interface and user-driven workflows give operators, engineers and managers fast access to the data they need. Work with dimensional data in an interactive reporting environment: sort, filter and drill into results, switch between text and CAD views, and view part summaries, insights and event logs alongside numeric results.

Deployment
FUSION installs alongside PC-DMIS and stores measurement data on local hardware. It is designed to operate without an internet connection or cloud account, keeping measurement data on your own systems.

Statistical and analytical capabilities
Powerful statistical analysis without unnecessary complexity: understand process behaviour over time, receive early warnings when a process begins to drift, and forecast characteristic trends from recent samples to trigger alerts before tolerance breaches occur.

Features

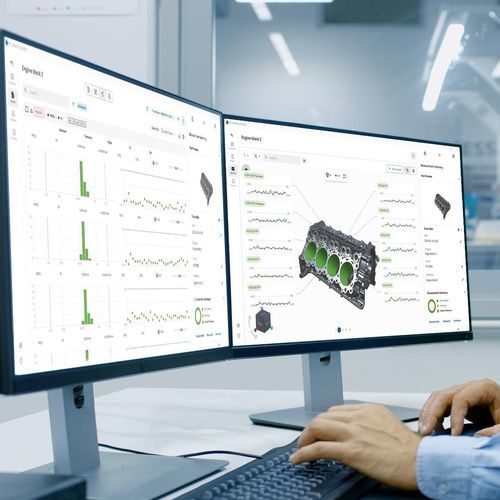

• Interactive reporting and visualisation: sort, filter, drill into results; text and CAD views; part summaries, insights and event logs.
• Real-time quality monitoring: view production in grid or CAD view, automatic measurement data feed from PC-DMIS, highlight worst-performing characteristics and raise alerts on deviation.
• Predictive quality: forecast characteristic trends and pre-tolerance alerts to move from reactive inspection to proactive warning.
• Statistical process control (SPC): Cp/Cpk per characteristic with configurable limits, Nelson Rules checks toggleable individually, inline trend, histogram and box plot charts, and support for critical characteristics with tighter warning thresholds.
• Trace-driven analysis: filter samples by operator, shift, machine, lot or custom trace fields; combine filters across status and time window; drill from aggregate statistics down to individual samples.
• Searchable measurement history: recall historic reports with a click, search an archive of past dimensional data and metrology reports for root-cause analysis, audit and traceability; legacy data can be imported via DFQ drag-and-drop.

Typical uses
Review single measurements on the shop floor; monitor process behaviour across shifts; run production-population statistical analysis; perform root-cause investigations using searchable historical data and trace filters.

Specifications

• Data synchronisation: automatic from PC-DMIS
• Reporting: persona-based reports for operator, engineer, quality and production roles
• Deployment model: installed on-premises alongside PC-DMIS; local data storage (no cloud required)
• SPC functionality: Cp/Cpk, Nelson Rules, configurable limits, trend/histogram/box plot charts
• Filtering and traceability: operator, shift, machine, lot, custom trace fields
• Historic data: searchable archive, DFQ import for legacy data
• Interactive views: grid and CAD views, drill-down to individual samples
