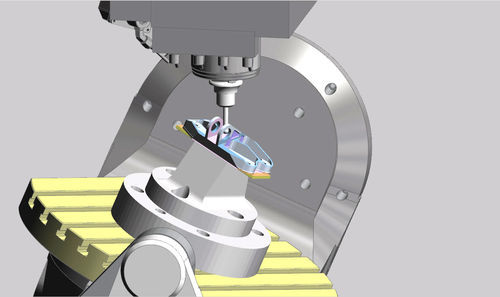

Programming software Edgecam

CAMmanufacturinginspection

Overview
Hexagon Edgecam is a CAM solution for CNC programming that combines automation, optimized toolpaths and integrated inspection to accelerate machining workflows and improve process predictability. It supports milling, turning and mill/turn environments for manufacturers in aerospace, automotive and heavy industry.

Key benefits

• Intelligent automation: Automatic Feature Recognition and Strategy Manager to speed programming, reduce manual setup and enforce standards.
• Advanced machining performance: Optimized toolpaths including waveform roughing and race line finishing to reduce cycle times and improve surface quality.
• Integrated inspection and validation: Built‑in probing and on‑machine inspection workflows to detect issues early and reduce rework.

Features

• Advanced multi‑axis machining: Program 3–5 axis milling, complex mill/turn and multi‑task machines with optimized toolpaths.
• Waveform roughing technology: Maintains constant chip load for high‑speed material removal and extended tool life.
• Race line finishing: High‑speed finishing strategies for superior surface finishes on complex geometries.
• Intelligent automation: Automatic Feature Recognition, Strategy Manager and knowledge capture for repeatable setups.
• Simultaneous machining: Support for 2.5‑ to 5‑axis simultaneous programming and complex 6‑axis configurations.
• Turning and mill‑turn support: Program multi‑turret and sub‑spindle machines within a single environment.
• High‑speed and heavy machining: Strategies for constant tool engagement and support for Right Angle and Facing Heads with collision‑aware simulation.
• Edgecam Inspect integration: Probe and measurement cycles integrated into machining sequences for in‑process validation.
• Programming automation: PCI‑JavaScript automation and feature‑based machining to capture manufacturing knowledge and accelerate NC generation.
• Turn‑key post processing and machine simulation: Deliver machine‑ready NC code with accurate simulation and verification.

Featured modules

• Edgecam Mill/Turn — Program complex multi‑task machines combining turning and milling with full simulation.
• Edgecam Milling — From 2.5‑axis to advanced 5‑axis machining with intuitive workflows and multi‑axis toolpaths.
• Edgecam Turning — Support for multi‑turret, sub‑spindle and synchronised turning operations.

Add‑on modules

• Edgecam Waveform — High‑speed roughing strategy that maintains constant chip load for faster cuts and longer tool life.
• Edgecam Inspect — Integrate probing cycles for real‑time measurement and validation during machining.
• Edgecam Wire EDM — 2‑ and 4‑axis wire EDM programming and simulation.
• Edgecam Intelligent Manufacturing — Automate toolpath creation using feature‑ and knowledge‑based strategies.

Product use cases (selected case studies)

• AI Met Limited: Improved efficiency and reduced cycle times using Edgecam automation and optimized toolpaths.
• Société Toulousaine d’Étude d’Usinage: Achieved consistent precision in aerospace components with advanced toolpath strategies.
• Raybar Machine Company: Reduced downtime and scrap through integrated inspection and real‑time validation.
• Logan Machine Company: Increased productivity by adopting Edgecam for automated CNC programming and in‑process verification.

Downloads and resources

• Edgecam brochures, release notes and product documentation (downloadable PDFs).
• Customer case studies and deployment references demonstrating real‑world benefits.

Technical specifications

• Milling: Support for 3‑ to 6‑axis strategies and complex multi‑axis workflows.
• Turning and mill‑turn: Support for multi‑turret, sub‑spindle and combined mill/turn environments.
• High‑speed machining: Waveform roughing and strategies to maintain constant tool engagement.
• Heavy machining: Support for Right Angle and Facing Heads with collision‑aware simulation for large parts.
• Integrated inspection: On‑machine probing and measurement via Edgecam Inspect.
• Automation: Automatic Feature Recognition, Strategy Manager, PCI‑JavaScript and knowledge capture.
• Post processing: Turn‑key post processors and full machine simulation for machine‑ready NC code.
