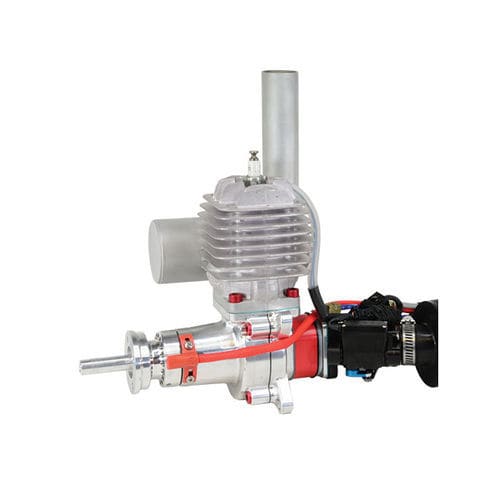

0 - 10hp piston engine DA 35 EFI

0 - 10kgfor drones2-stroke

DA 35 EFI UAV Engine is fit with state of the art electronic fuel injection. A special magnet configuration mounts in the prop hub. It allows the prop to easily flip for no-fuss starting. A single 3 cell Lipo battery of 1500mah or larger capacity, powers the ECM. At full throttle, total power draw is only 12 watts (1 amp). Customize the engine by selecting muffler and alternator options. This 3 phase brushless alternator drives direct on the engine crankshaft. The stator mounts to the crankshaft casing; the rotor spins on the crankshaft. The system includes a 200 W Power Management Unit. The PMU provides three lines with a chosen voltage in the range: 12 – 15 VDC at 15A or 200W max and 4.8 – 7 VDC at 7A or 42W max. Configurable with LiIon, LiPo, LifePO4, SLA, NiCad, NiMH, and Lead Acid Battery. 24 V option available, contact HFE Int. for info and pricing. This 3 phase brushless alternator drives direct on the engine crankshaft. The stator mounts to the crankshaft casing; the rotor spins on the crankshaft. The system includes a 500 W Power Management Unit with an integrated starter controller, allowing the engine to start remotely. The PMU provides three lines with a chosen voltage in the range: 24 – 28 VDC at 12.5A or 350W max, 12 – 15 VDC at 9A or 108W, and 4.8 – 8 VDC at 8A or 42W. Configurable with LiIon, LiPo, LifePO4, SLA, NiCad, NiMH, and Lead Acid Battery. Lead Time - 4 -8 weeks Displacement - 35 cc, 2.14 ci Weight (ECM) - 98 g, 3.45 oz Weight (Fuel Pump) - 150 g, 5.29 oz
