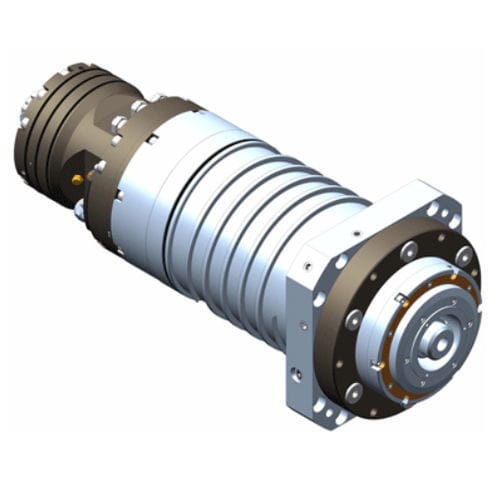

Machining motor spindle ES505 H6161H1755
lubricationcoolingmotorized

machining motor spindle
machining motor spindle
machining motor spindle
Add to favorites
Compare this product

Go to the HSD SpA website for more information

Characteristics

Function
machining, lubrication, cooling
Drive mechanism
motorized
Other characteristics
with automatic tool changer, liquid-cooled, hydraulic, cooled
Rotational speed

8,000 rpm, 20,000 rpm, 24,000 rpm
(50,265.48 rad.min-1, 125,663.71 rad.min-1, 150,796.45 rad.min-1)

Diameter

140 mm
(5.5 in)

Description

HOUSING HST610 Torque S1/S6 30/36Nm Power S1/S6 25/30kW HSK A63 Synchronous Automatic Hydraulic Tool Release Rated Voltage 536V Encoder LB 1Vpp o TTL Poles 6 Ceramic Bearings Bearings Lubrication grease or air/oil Max Frequency 1000/1200 Weight 34kg Rotary Joint Liquid Cooling
