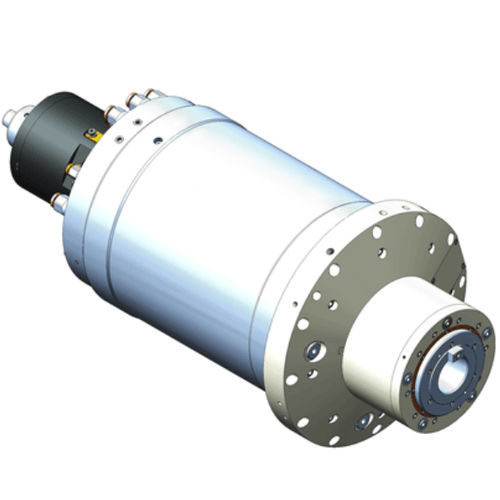

Machining motor spindle ES575 BT40 - H6161H1449
lubricationcoolingAC motor

machining motor spindle
machining motor spindle
machining motor spindle
Add to favorites
Compare this product

Go to the HSD SpA website for more information

Characteristics

Function
machining, lubrication, cooling
Drive mechanism
AC motor
Other characteristics
with automatic tool changer, liquid-cooled, hydraulic
Rotational speed

Min.: 3,000 rpm
(18,849.56 rad.min-1)

Max.: 16,000 rpm
(100,530.96 rad.min-1)

Diameter

230 mm
(9.1 in)

Description

Torque S1/S6 95,5/114,5Nm Power S1/S6 30/36kW BT40/ISO40 Asynchronous Automatic Hydraulic Tool Release Rated Voltage 380V Encoder LB 1Vpp o TTL Poles 8 Ceramic Bearings Bearings Lubrication grease or air/oil Max Frequency 1067 Weight 120kg Rotary Joint Liquid Cooling
