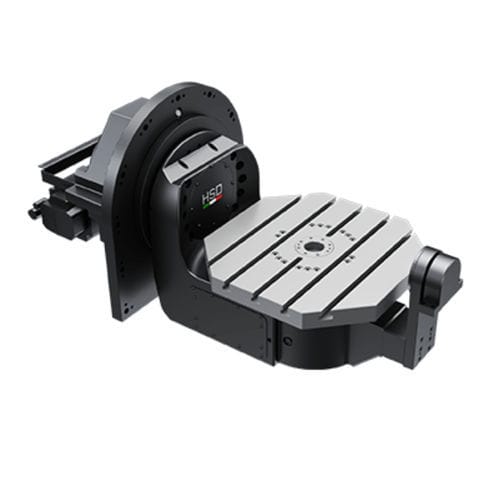

Tilting rotary table RBM6MA
for aerospace applicationselectricclamping

tilting rotary table
tilting rotary table
Add to favorites
Compare this product


Characteristics

Configuration
tilting
Applications
for aerospace applications
Operation
electric
Other characteristics
clamping
Diameter

600 mm (24 in)

Description

CODES - ROTARY TABLES RBM6MA - SINGLE SIDED - MECHANICAL TECHNICAL FEATURES Table plate size 600 mm (Option 500; 750)* Max load 500 kg Tilting Axis Range ±110° Cooling liquid - Weight ~ 936 kg Axis rotary Measuring System Accuracy ± 5***arcsec Clamping torque (Hydraulic) 2500 Nm Max Speed 25** rpm Torque 700** Nm Axis tilting Measuring System Accuracy ± 5***arcsec Clamping torque (Hydraulic) 4500 Nm Max Speed 25** rpm Torque 2490** Nm *Optional plates are available for information please contact HSD **Performance may change according to servomotor chosen ***With standard axis Encoder ±5 arcsec With optional axis Encoder ±2,5 arcsec

Catalogs

RBM6MA
RBM6MA
1 Pages
