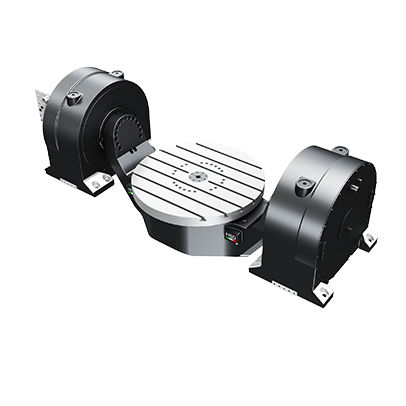

Tilting rotary table RCT8MW
for aerospace applicationselectricclamping

tilting rotary table
tilting rotary table
Add to favorites
Compare this product


Characteristics

Configuration
tilting
Applications
for aerospace applications
Operation
electric
Other characteristics
clamping, direct-drive
Diameter

800 mm (31 in)

Description

CODES - ROTARY TABLES DOUBLE SIDED - DIRECT DRIVE TECHNICAL FEATURES Max load 1200 kg Tilting Axis Range ±120° Cooling liquid Weight ~ 2500 kg Axis rotary Measuring System Accuracy ±5 ±2,5*** arcsec Clamping torque (Hydraulic) 4000 Nm Max Speed 100 rpm Torque 1850 Nm Axis tilting Measuring System Accuracy ±5 ±2,5*** arcsec Clamping torque (Hydraulic) 8000 Nm Max Speed 100 rpm Torque 3700 (2X1850) Nm *Optional plates are available for information please contact HSD **Performance may change according to servomotor chosen ***With standard axis Encoder ±5 arcsec With optional axis Encoder ±2,5 arcsec
