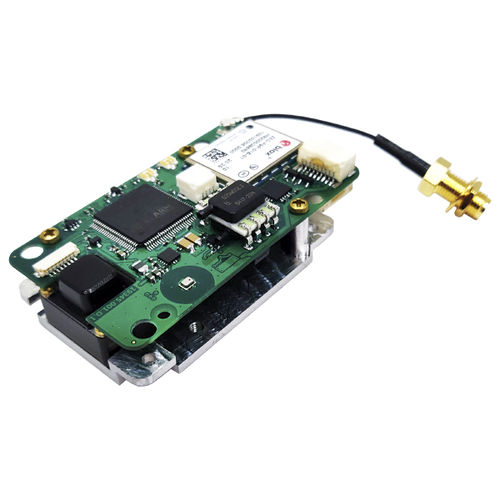

IMU inertial system INS-U-OEM

AHRSINSMEMS

• INS, AHRS and ADC (Air Data Computer) output data • Multi frequency and Multi constellations GNSS Receiver • GPS, GLONASS, GALILEO, QZSS and BEIDOU GNSS • Designed for fixed-wing and multi-rotor Aerial Platforms • Two Barometers for Indicated Airspeed • Position accuracy = 1 cm (RTK) • Heading accuracy = 0.3 deg (RTK, Dynamic) • Pitch & Roll accuracy = 0.1 deg (RTK, Dynamic) • Gyro-compensated, embedded Fluxgate magnetic compass • Optional external Stand-Alone Magnetic Compass • Small Size, light weight, low power • Affordable price The Inertial Labs GPS-Aided Inertial Navigation System (INS-U-OEM) is OEM version of new generation, fully-integrated, combined GPS, GLONASS, GALILEO, QZSS and BEIDOU GNSS and high-performance strapdown system, that determines position, velocity and absolute orientation (Heading, Pitch and Roll) for any device on which it is mounted. Horizontal and Vertical Position, Velocity and Orientation are determined with high accuracy for both motionless and dynamic applications. The Inertial Labs INS-U-OEM utilizes advanced single antenna GNSS receiver, two barometers, magnetometers, 3-axes each of calibrated in full operational temperature range Advanced MEMS Accelerometers and Gyroscopes to provide accurate Position, Velocity, Heading, Pitch and Roll of the device under measure. INS-U-OEM contains Inertial Labs new on-board sensors fusion filter, state of the art navigation and guidance algorithms and calibration software. KEY FEATURES, BENEFITS & FUNCTIONALITY • Commercially exportable GPS-Aided Inertial Navigation System • 3-in-1 strapdown system: INS + AHRS + ADC (Air Data Computer) • Embedded in-flight calibration
