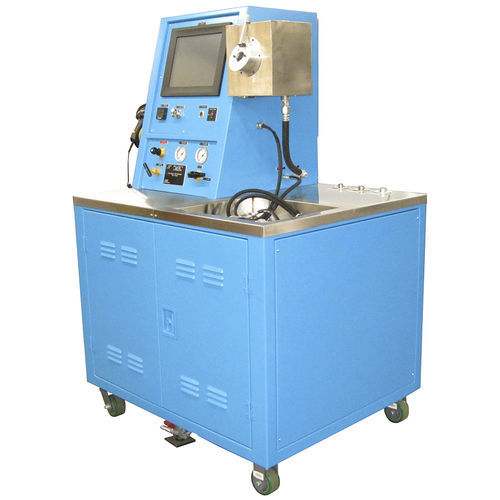

Pressure test bench D39257 for fuel pumpfor the aerospace industry
Add to favorites
Compare this product
Characteristics
- Test type
- pressure
- Tested product
- for fuel pump
- Other characteristics
- for the aerospace industry
Description
This test stand is designed for the purpose of testing new and overhauled F100 fuel nozzles. Model 39257 is equipped with a gear pump capable of supplying 4 GPM at 1000 PSI of MIL-PRF-7024 Type 2 to the unit under test (UUT).
Model 39257 is equipped with an industrial touchscreen panel PC and a high speed data acquisition system. A National Instruments high speed data acquisition card capable of taking 1,000,000 samples/second. A custom software program written in LabVIEW® enables automated triggering and plotting capabilities for pressure vs. time to measure the step response over a 20 millisecond window.
Additional information
WIDTH -
46 inches
DEPTH -
37.5 inches
HEIGHT -
69.8 inches
WEIGHT -
Approximately 1200 lbs.
FLUID -
MIL-PRF-7024 Type 2, 20 gal capacity
MAX PRESSURE -
1000 PSIG
MAX FLOW -
4 GPM
