Pressure test bench D39291
flowtemperaturefor fuel pump

pressure test bench
pressure test bench
Add to favorites
Compare this product


Characteristics

Test type
pressure, flow, temperature
Tested product
for fuel pump
Other characteristics
aeronautical, for the aerospace industry

Description

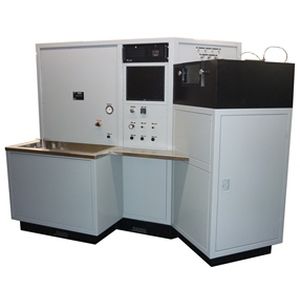

This test stand is designed for the purpose of testing new or overhauled APU Fuel Nozzles. Model 39291 is equipped with a 6 segment patternator that utilize pressure transducers to measure fluid volume per segment. The test is semi-automated through the test stand software to control the test start and stop points while recording test data. The test stand can be configured for a variety of segment patternators, including 12 segment as a common configuration, and come equipped with spray angle measurement capabilities. Model 39291 incorporates a computer based data acquisition system using National Instruments hardware. Instrumentation signals including pressure, spray angle measurement, fluid flow, and fluid temperature are fed into the data acquisition hardware. A custom software program that is developed in LabVIEW® reads, displays, and reports necessary parameters to complete the test procedures. Additional information WIDTH - 105.5 inches DEPTH - 64 inches HEIGHT - 78 inches WEIGHT - Approximately 5000 lbs. FLUID - MIL-PRF-7024 Type 2, 15 gal capacity MAX PRESSURE - 1500 PSIG MAX FLOW - 3 GPM
