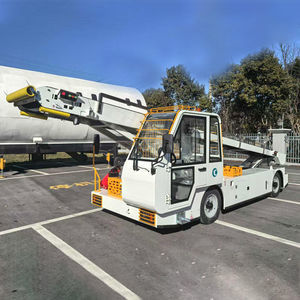

Self-propelled belt loader JSTY5040JCSE

for airport

Product overview
The JSTY5040JCSE is a new-energy pure-electric baggage belt loader designed and manufactured by Tianyi Joint-stock Company for loading and unloading baggage, light cargo and mail to/from aircraft lower holds. The vehicle uses a domestically produced electric-drive chassis with frequency-conversion stepless speed regulation. Primary power components include Ningde Times LiFePO4 battery cells, and a permanent magnet synchronous traction motor and controller developed with Beijing Institute of Technology Huachuang. Selected accessories from established suppliers ensure technical compatibility with multiple commercial aircraft types.

Applicable aircraft

• B747, B757, B767, B777, DC-10, MD-11, A300, A310, A320, A330

Main configuration and components

• Driving motor model: HCDM030HP2
• Driving motor controller: HC30LKPIC-K21-V1-TY
• Steering shaft: 3000000-HY430A
• Drive shaft: 2400000-HY540A
• Hydraulic motor: HCDM007MG1
• Hydraulic motor controller: HCDM007CL1
• Energy storage assembly: L200B01
• Main battery type: Ningde Times LiFePO4 power battery

Operation, capacity and options

• Conveyor belt lift range — front end: 950–4580 mm
• Conveyor belt lift range — rear end: 290–1680 mm
• Transmission speed: 0.16–0.5 m/s
• Conveyor belt width: 700 mm
• Conveyor belt carrying capacity: 140 kg/m
• Optional equipment: cab and canopy available

Performance & dimensions

• Overall dimensions (L × W × H): 8050 × 2150 × 1950 mm
• Wheelbase: 2900 mm
• Maximum speed: 30 km/h
• Curb weight: 3620 kg
• Total energy storage: 88.87 kWh
• Turning circle outer diameter: 13,500 mm
• Endurance examples: small airports 305+459 (km+t); medium 306+456; large 308+456

Technical specifications

• Model: JSTY5040JCSE
• Drive chassis: domestic electric-drive chassis with frequency-conversion stepless speed regulation
• Battery: Ningde Times LiFePO4 cells
• Drive motor: permanent magnet synchronous traction motor (Beijing Institute of Technology Huachuang)
• Motor controller: HC30LKPIC-K21-V1-TY
• Hydraulic drive: Hydraulic motor HCDM007MG1 with controller HCDM007CL1
• Conveyor width: 700 mm
• Conveyor capacity: 140 kg/m
• Transmission speed range: 0.16–0.5 m/s
• Lifting range (front): 950–4580 mm
• Lifting range (rear): 290–1680 mm
• Overall size (mm): 8050 × 2150 × 1950
• Wheelbase (mm): 2900
• Maximum speed: 30 km/h
• Curb weight: 3620 kg
• Total energy storage (kWh): 88.87
• Turning circle outer diameter (mm): 13,500
