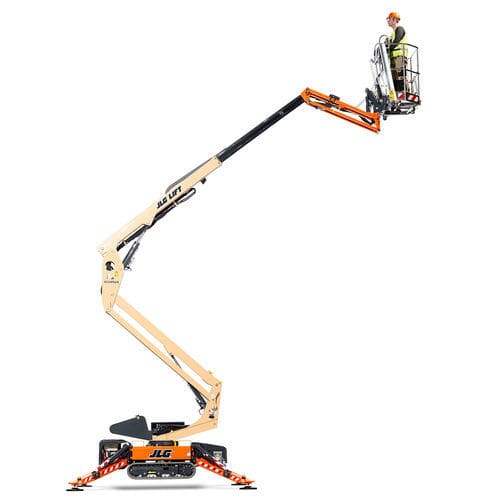

Working lifting platform X13J PLUS

telescopicsingle-mastfor airport

Working Outreach: 7.08 m / 23.2 ft Machine Width: 0.78 m / 2.6 ft Key Features Minimal emissions and noise pollution. Reduce your set-up time with auto-levelling outriggers. Equipped with track drive for easy manoeuvrability in sensitive environments. Low weight for ease of transportation and operation in weight restricted areas Power Source Engine Type – Petrol - Honda iGX390,8.7kw Performance Data Gradeability - 28.7 % Jib - Range of articulation - 89 Degrees Platform Capacity - 230 kg / 507.1 lb Platform Capacity - 0.60m x 1.31m Slope Tolerance - 16 ° Swing - 360 Degrees Dimensional Data Machine Height - 1.99 m / 6.5 ft Machine Length - 3.90 m / 12.8 ft Machine Width - 0.78 m / 2.6 ft Outrigger Footprint Length - 2.80 m / 9.2 ft Outrigger Footprint Width - 2.80 m / 9.2 ft Reach Specifications Horizontal Outreach - 6.58 m / 21.6 ft Platform Height - 11.30 m / 37.1 ft Working Outreach - 7.08 m / 23.2 ft General Specifications Capacity - Hydraulic Reservoir - 24 L / 6.3 gal. Ground Bearing Pressure - Outriggers - 2.41 Kg/cm2 Machine Weight - 2185 kg / 4817.1 lb Minimal emissions and noise pollution. Reduce your set-up time with auto-levelling outriggers. Equipped with track drive for easy manoeuvrability in sensitive environments. Low weight for ease of transportation and operation in weight restricted areas.
