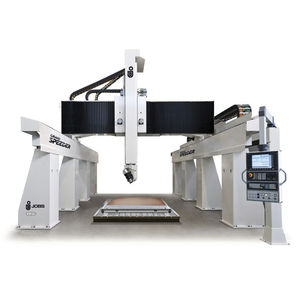

CNC milling machine JOMACH 145

verticalfor the aerospace industry3-axis

Jomach 145 is a mobile gantry machining centre with X axis under floor level guides, designed for those users who require maximum economic benefit from an investment in high-speed milling technology. The simple design, innovative construction technology and complete range of equipment make Jomach 145 a high-productivity milling center featuring: • innovative rack traction system and dual motor for each axis • top-class axes accuracy and dynamics • integrated dust suction system with suction hood joined to spindle with NC programmable travel to remove machining residue at the work point • additional options: part control and measurement, automation of production process (tool change, pallet change, process control and measurement systems, tool presetting) • unmanned working Pneumo-hydraulic counterbalance: - compensation of ram weight - optimized design, simple and reliable High speed and reliability X axis: - 2 rails series 55 (3+3 pads) per side - Dual drive Rack&Pinion - Heidenhain pressurized scales High speed, stiffness and thrust Y axis: - 2 rails series 45 (3+2 pads) - High speed, watercooled ballscrew - Heidenhain pressurized scales Simple and efficient Y axis: - 2 rails series 45 (3+2 pads) - High speed, watercooled ballscrew - Heidenhain pressurized scales Simple and efficient
