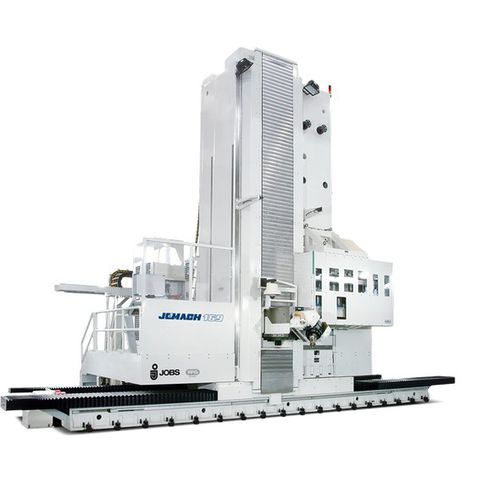

CNC milling machine JOMACH 169

verticalfor the aerospace industry3-axis

Jomach 169 is a mobile column milling machine particularly conceived for machining with orientable tool axis. Its versatility makes this machine the ideal solution for Aerospace structural component machining and for the complete machining of styling models. Jomach 169 features: • mobile column structure with moving mass optimisation • top-class axes accuracy and dynamics • vast selection of dimension configurations • integrated dust suction system with suction hood joined to spindle with NC programmable travel to remove machining residue at the work point • additional options: part control and measurement, automation of production process (tool change, pallet change, process control and measurement systems, tool presetting) Jomach 169: a simple machine for complex systems for the machining of medium-large composite skins and structures Pneumo-hydraulic counterbalance: - compensate for ram weight - optimized design, simple and reliable High speed and reliability X axis: - 2 rails series 65 (4+4 pads) - rack and pinion transmission with electronic backlash compensation High speed and accuracy X axis: - 2 rails series 65 (4+4 pads) - rack and pinion transmission with electronic backlash compensation High speed and accuracy X axis: - 2 rails series 65 (4+4 pads) - rack and pinion transmission with electronic backlash compensation High speed and accuracy
