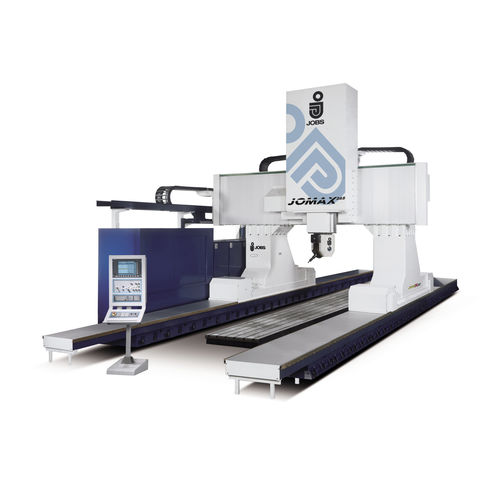

CNC milling machine JOMAX 265

verticalfor the aerospace industry3-axis

JomaX 265 presents a medium/large size mobile gantry configuration prearranged for a wide range of customizations according to the specific applications and requirements of the customers. JomaX 265 is capable of exploiting both the high power available to the spindle (up to 75 kW - up to 100 hp) and the outstanding performing dynamics and features: • high-volume chip removal capability • maximum structural rigidity • volumetric precision • high acceleration and speed dynamics • high configurability and compactness • high degree of customised automation JomaX 265, super gantry for machining which requires rigidity and flexibility: • high power and high torque machining • heavy-duty machining of large structural parts • highly automated systems Z axis optical scale mounted on Invar bar: - lower the influence of ram thermal variations Higher accuracy Pneumo-hydraulic counterbalance: - compensation for ram weight - higher dynamic performances - less wear on the transmission High speed and reliability BUSS system: - available on continuous or indexed C axis - very high clamping force: 180.000N - can accept mechanical and electrospindle heads Excellent flexibility Y axis: - 2 rails series 100 (3+2 pads) Z axis: - 2 rails series 100 (3+3 pads) + 1 rail series 65 (2 pads); - Heidenhain pressurized scales; - Rack and pinion transmission, mechanical backlash compensation. Very high rigidity and accuracy X axis: - 2 rails series 55 (3+3 pads) per side - 2 Heidenhain pressurized scales - rack and pinion transmission, mechanical backlash compensation Very high rigidity and accuracy
