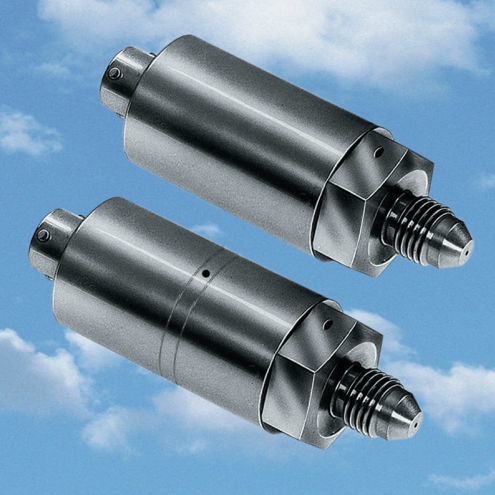

Absolute pressure sensor APT-20-1000
mVVdcOEM

absolute pressure sensor
absolute pressure sensor
absolute pressure sensor
Add to favorites
Compare this product


Characteristics

Pressure type
absolute
Output signal
mV, Vdc
Other characteristics
OEM
Applications
for aircraft
Domain
for the aerospace industry
Pressure range

Min.: 0 bar (0 psi)

Max.: 350 bar (5,076.32 psi)

Temperature range

Min.: -55 °C (-67 °F)

Max.: 150 °C (302 °F)

Description

High Natural Frequencies Unprecedented Stability And Reliability To High Temperatures Ruggedized Internal Construction Leakproof, All Welded Construction No Leak After Exposure To 2000°F (1093°C) Utmost In Safety Secondary Containment Of Pressure Media Fully Qualified Passed Extensive Environmental Tests FAA Authorization TSO-C47 (Consult Factory on Pressure Ranges) FAA Manufacturer’s Maintenance Facility Excitation - - 10VDC Regulated - 28VDC ± 4V Output - - 0- 100mV - 0 - 5VDC Diff. or 0.5 - 5VDC Single Ended Power Consumption - - 100mW (Typ.) - 280mW (Typ.) Input Impedance - - 1000 Ohms (Min.) - N/A Output Impedance - - 2000 Ohms (Max.) - 100 Ohms (Max.) Weight Gage and Absoloute Versions - - 0.3 Lb. (Max.) - 0.37 Lb. (Max.) Case Outline Gage and Absoloute Versions - - Case Length May Vary With Measuring Mode - Construction Materials - - 316 SS And 17-4 PH SS - Pressure Range - - To Spécification 0-15 PSI to 0-5000 PSI (0-1.0 BAR to 0-350 BAR) (Typ.) - Proof Pressure - - 2 Times Rated Pressure Range - Burst Pressure - - 3 Times Rated Pressure Range Up to 10,000 PSI - Insulation Résistance - - 100 Megohms Min. @ 50VDC
