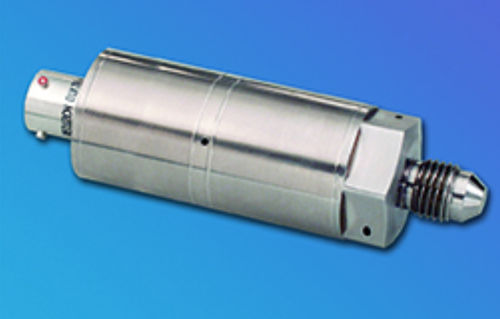

Absolute pressure sensor APTE-6-1000

mVVdcOEM

High Natural Frequencies Unprecedented Stability And Reliability To High Temperatures Ruggedized Internal Construction Leakproof, All Welded Construction No Leak After Exposure To 2000°F (1093°C) Utmost In Safety Secondary Containment Of Pressure Media Fully Qualified Passed Extensive Environmental Tests FAA Authorization TSO-C47 (Consult Factory on Pressure Ranges) FAA Manufacturer’s Maintenance Facility Output 0 - 100mV 0 - 5VDC Diff. or 0.5 - 5VDC Single Ended Power Consumption 100mW (Typ.) 280mW (Typ.) Input Impedance 1000 Ohms (Min.) N/A Output Impedance 2000 Ohms (Max.) 100 Ohms (Max.) Weight Gage and Absoloute Versions 0.3 Lb. (Max.) 0.37 Lb. (Max.) Case Outline Gage and Absoloute Versions Case Length May Vary With Measuring Mode Construction Materials 316 SS And 17-4 PH SS Pressure Range To Specification 0-15 PSI to 0-5000 PSI (0-1.0 BAR to 0-350 BAR) (Typ.) Proof Pressure 2 Times Rated Pressure Range Burst Pressure 3 Times Rated Pressure Range Up to 10,000 PSI Insulation Resistance 100 Megohms Min. @ 50VDC Mounting Torque 75 Inch-Pounds (Max.) Total Error Band Includes Linearity, Hysteresis, Repeatability, Mounting Error and Vibration Effects, Thermal Errors Within The Compensated Temperature Range, As Well As Normalization Errors of Zero and Full Scale. (See Fig I and II For Typical Cases)
