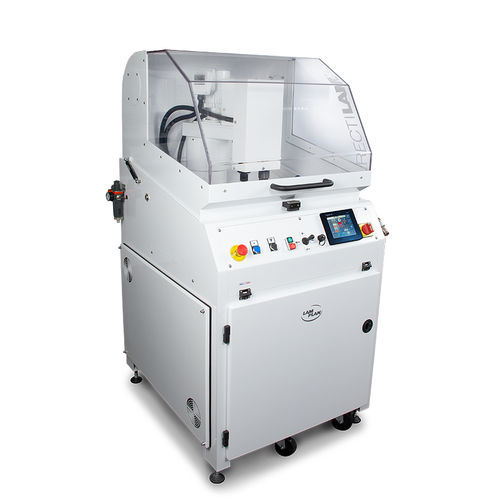

Metal polishing machine RECTILAM®2.0

automaticsurfacefor aeronautics

When the prepolishing phase demands a high level of effectiveness and precision the RECTILAM® 2.0 is the answer. This machine is particularly productive in the preparation of coated or raw samples by high speed prepolishing. Several parts can be installed on the central pressure sample holder. Large parts can also be treated individually. The principle of high speed prepolishing on stone enables significant material removal and unrivalled flatness without rounding the edges. The single block design and rigidity of the RECTILAM® 2.0 avoids vibration which is detrimental to the surface condition. In order to ensure significant and even removal of material, a reconditioning system automatically follows each stage of polishing. The RECTILAM® 2.0’s unique feature is its 2 axis principle. The Z axis deals with the motorised rise and fall of the reconditioning tool and the pressurisation of the sample carrier. The R axis enables precise positioning of the sample holder in relation to the grinding wheel in order to make to most of the available abrasion surface. During the start cycle the starting point of the sample/grinding wheel is automatic. The stock removal is continuously managed. The real-time display shows the operator if the rectification settings entered are appropriate. All parameters are managed and clearly shown on the 5.7’’ touchscreen with graphic display. The RECTILAM® 2.0 is supplied with an integral security hood. The assembly includes a closed-circuit lubricating filtration system integrated into the machine as well as a spray-tap for cleaning. Grinding wheel diameter Ø 356 mm Control By 5.7 inch touchscreen and joystick
