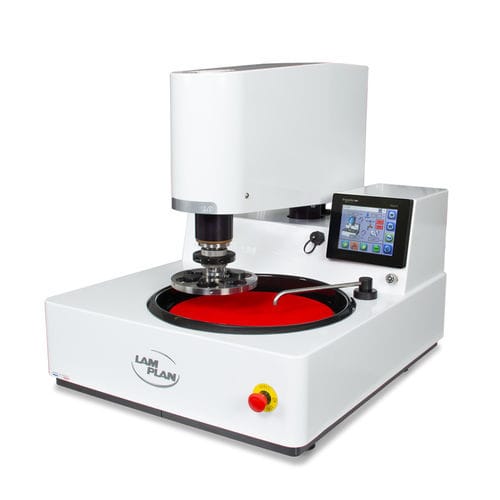

Metal polishing machine MASTERLAM®1.0

automaticfor aeronautics

Automatic, single-plate Ø 250 to 300 mm polishing machine with bidirectional rotation and variable speed. Touch screen controls, intuitive and user friendly interface, MASTERLAM® machines are equipped with the best programming, parameter storage and export technologies. Control of the 4-circuit DISTRILAM® dosing unit directly integrated. The MASTERLAM®1.0 is equipped with a powerful central-pressure head, bidirectional rotation, variable speed and pressure. The distinctive feature of this polishing head is the oscillation function with oscillation configurable both for amplitude and frequency. The use of the oscillating head will allow you to achieve unrivalled levels of performance and versatility: it improves the quality of flatness, increases the stock removable and the service life of polishing supports (uniform wear due to the use of the entire surface of the plate.) La MASTERLAM®1.0 with the oscillation* option, is particularly efficient for polishing large-sized samples and for superfinishing of mechanical components, prototypes or micro-series. A stock removal control system with an automatic “stop at measurement” function is also available (accurate to 0,02 mm). Plate capacity Ø 250 to 300 mm Body Steel coated with epoxy paint Bowl Removable, in resin, to ease cleaning Controls Touch screen (5,7“) Plate rotation speed Variable from 20 to 650 rpm Bidirectional rotation
