Compression tester 1542.00

forcefor jackfor pipes

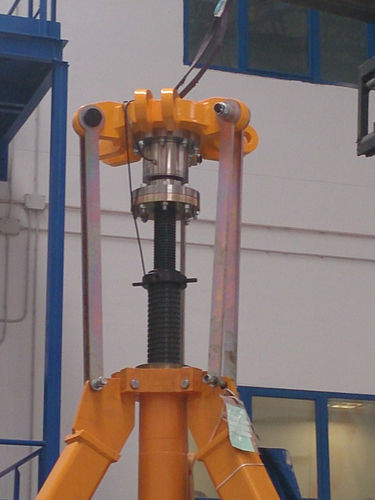

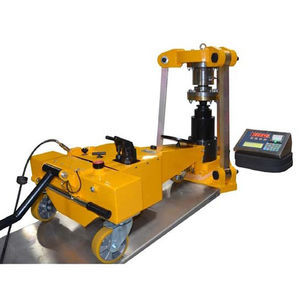

Description The universal jack tester P/N 1542.00 is a portable test system designed to verify axle and tripod jacks from various manufacturers. It covers nominal jack capacities from 5 t to 200 t and supports test loads up to 110% of nominal (225 t maximum). The system integrates a load cell and on-board data recording for accurate measurement and exportable results.

Applications

• Set and verify safety valve settings
• Detect hydraulic leaks in installations
• Assess structural resistance of axle jacks
• Test cylinder integrity of tripod jacks
• Verify accuracy of optional load gauges

Standard Features

• Portable design for on-site testing
• Test capacity up to 225 t (configurable to customer requirements)
• ZERO and Span adjustments for calibration
• Exportable test results to computer file
• CE marking

Requirements Technical Data Sheet required.

Components

• Fixture structure with integrated load cell
• Articulated high-strength steel bars to adapt tester dimensions to the jack
• Locking pins with safety device to prevent inadvertent movements
• Access ramp and auxiliary platform for easy positioning of axle jacks
• Carry case with integrated LCD display to register load during tests
• Storage and shipping container
• Multiple spherical-radius jack adapters for compatibility with different jacks and load points

Technical specifications

• Part number: 1542.00
• Product type: Universal jack tester (axle and tripod jacks)
• Tested jack capacity range: 5 t to 200 t
• Maximum test capability: up to 110% of nominal load (225 t maximum)
• Functions: safety valve verification, hydraulic leak testing, structural resistance checks, cylinder integrity tests, load gauge accuracy checks
• Portable design with integrated load cell and LCD data recording
• Data output: exportable test results to computer file
• Adjustments: ZERO and Span
• Certification: CE marking
