Compression tester 1570.00

forcefor jackaeronautical

Product overview

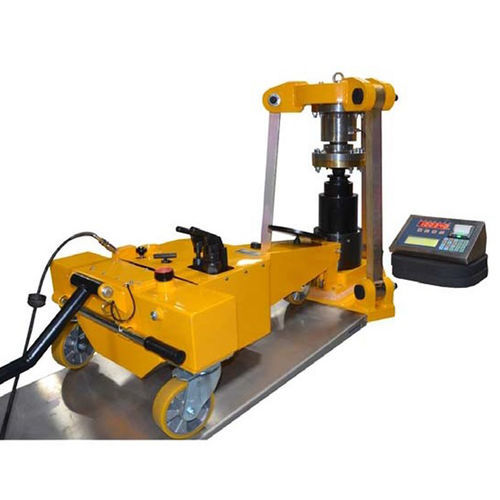

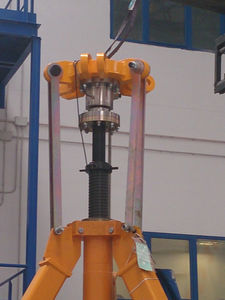

The Jack tester P/N 1570.00 is designed to test axle jacks from any manufacturer with capacities from 5 t up to 150 t. The equipment can perform tests up to 150% of the nominal load of the jack (225 t maximum load).

Primary functions

• Set and check the safety valves setting
• Test hydraulic installations for leaks
• Check structural resistance of the axle jack
• Check optional load gauge accuracy

Standard features

• Portable equipment
• Load test capacity up to 225 t (according to customer requirements)
• Easy ZERO and Span adjustments
• Ability to export test results to computer files
• CE marking

Components

• Fixture structure with integrated load cell
• Articulated bars manufactured in high strength steel to adapt the jack tester dimensions to the jack to be tested
• Locking pins with safety device to block involuntary movements
• Access ramp and auxiliary platform for easy positioning of the axle jack
• Robust suitcase with integrated LCD display to register the load during test
• Storage and shipping container
• Multiple spherical radius jack adapters for use with different jacks and loads

Technical specifications

• Product code: P/N 1570.00
• Model name: AXLE JACK TESTER
• Applicable jack range: 5 t to 150 t
• Maximum test load: 225 t (150% of nominal)
• Main uses: safety valve setting/check, hydraulic leak testing, structural resistance checking, load gauge accuracy checking
• Portable design with integrated load cell and LCD data registration
• Data export capability to computer files
• Includes access ramp, auxiliary platform and multiple spherical adapters
• Locking pins with safety device and articulated high-strength steel bars
• CE marked
