Towing dolly 1336.00

for maintenance2-axlewith 360° rotating wheels

Description

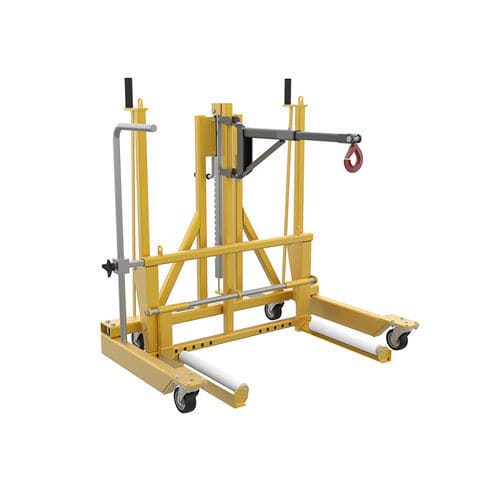

The wheel and brake change dolly is designed to speed up and secure removal, installation and transport of aircraft wheels and brake packs on ramp and in hangars. The lifting support with rollers enables rotation of the wheel for precise hub alignment. A hydraulic cylinder operated by a manual hand pump provides controlled lifting; a mechanical screw with reduction gearbox is available as an option. Mobility on four swiveling castors and an integrated towing capability facilitate ground handling across ramp and hangar areas.

Applicability

• A330 MRTT
• Wide Body UNIV (A330/340/350 + B777/787/747)
• DC10
• B767-400ER
• B767-400
• B767-200-300
• B747-800
• B747
• IL96
• MD11
• A310
• A330
• A340-200-300
• A340-500-600
• A350
• B777
• A300
• A380
• B787
• L1011

Standard Features

• Nominal load: 350 kg.
• Wheel diameter range: 260 mm – 1450 mm.
• Lifting capacity (stroke): 0 – 600 mm.
• Lifting arms with roller bearings; adjustable distance 210 – 740 mm.
• Four swiveling castor wheels for manoeuvring.
• Skydrol-resistant paint (yellow RAL 1028).
• Maximum towing speed: 6 km/h.

Optionals

• Special paint colours.
• Brake cradle for brake pack assembly/disassembly (narrow body) (P/N: 1331.00.0000).
• Brake cradle for brake pack assembly/disassembly (wide body) (P/N: 1331.10.0000).
• Detachable crane jib to assist handling of large brake packs (P/N: 1336.04.0000).
• Specific fixing bar to secure the aircraft wheel during movement (P/N: 1336.00.0305).
• Two fixed front wheels and two swivel caster wheels at rear (P/N: 1336.00.951).
• Mechanical screw lifting system with reduction gearbox instead of hydraulic system (P/N: 1336.00.0940).

Technical specifications

• Nominal load: 350 kg.
• Wheel diameter range: 260 mm – 1450 mm.
• Lifting capacity (stroke): 0 – 600 mm.
• Lifting arms: roller bearings, adjustable distance 210 – 740 mm.
• Lifting system: hydraulic cylinder operated by manual hand pump (optional mechanical screw with reduction gearbox).
• Mobility: four swiveling castor wheels (optional two fixed front + two swivel rear).
• Finish: Skydrol-resistant paint (yellow RAL 1028); special colours optional.
• Maximum towing speed: 6 km/h.
• Available accessories: brake cradles (narrow and wide body), detachable crane jib, fixing bar.
• Designed for continuous use; suitable for narrow-body up to large wide-body aircraft wheels and brake packs.
