Folding aircraft service trolley 1220.00

Description

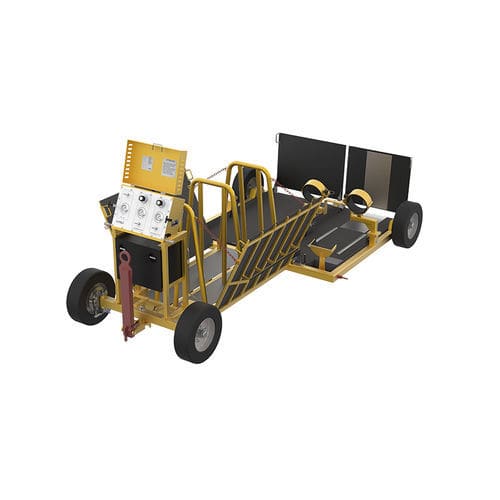

LANGA INDUSTRIAL offers the P/N 1220.00 Wheel and Brake Service Cart, a purpose-designed unit for wide-body aircraft maintenance. The cart transports an axle jack, wheel & brake changer dolly and can incorporate two main landing wheels, one brake assembly and an on-board nitrogen tyre charging system. It is optimized for movements on tarmac and aircraft parking areas with a maximum towing speed of up to 25 km/h. Lightweight folding ramps and tiltable loading platforms simplify loading and unloading of main wheels, axle jack and dolly, reducing required gradients and ground handling time.

Applicability
A330 MRTT, DC10, B767-400ER, B767-400, B767-200-300, B747-800, B747, IL96, MD11, A310, A330, A340-200-300, A340-500-600, A350, B777, A300, A380, L1011

Standard Features

• Two main landing wheels (standard up to ø1500 mm, overall width 590 mm).
• One wheel & brake changer.
• One axle jack (ramp & hangar type) up to 100 t capacity.

Optionals

• Nitrogen booster powered by nitrogen/compressed air (P/N: 0059.51.0000).
• Two supports for N2 bottles and control panel with nitrogen charging facilities (low and high pressure) (P/N: 1220.00.0951).
• One tool box (P/N: 1220.00.0953).
• Housing for one aircraft main brake assembly and auxiliary crane for manipulation (P/N: 1220.00.0952).
• Single load platform replacing two independent ramps for axle jack and dolly (P/N: 1222.00.0000).
• Self-retractable hose reel for nitrogen service (low and high pressure) (P/N: 1220.00.0955).
• Special paint colour.

Technical specifications

• Part number: P/N 1220.00.
• Designed for wide-body main fleets and for movements on tarmac/aircraft parking areas.
• Maximum towing speed: up to 25 km/h.
• Main landing wheels: standard size up to ø1500 mm, overall width 590 mm.
• Includes one wheel & brake changer and one axle jack (ramp & hangar type) up to 100 t.
• On-board nitrogen tyre charging system available.
• Lightweight folding ramps with minimum gradient for easy load/unload; loading platforms for jack and dolly are tiltable.
• Designed for long service life, low maintenance cost and user-friendly operation.
