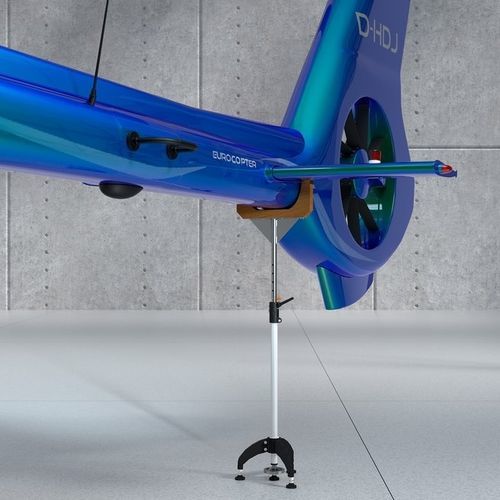

Light tail boom support for indoor maintenance
Compatible with:
Airbus H145 , H135
Contour-matched shell made of plywood with a rubber pad. Stepless adjustment of the height from 1460mm-1860mm 3-leg foot with additional adjustable central support Additional safety bolt for pinning, handling without tools
reliable welded construction adaptable to different landing works.
easy handling ergonomic operation low maintenance low storage size
Can be dismantled thanks to the foldable drawbar
Transport box (in mm: 2200 x 620 x 605)
Length 3 460 mm
Length folded 2 250 mm
Widthmin2 331 mm-Width max 2 731 mm
-Height400 mm
-Weight Tow Bar 100 kg-
Gross Weight 170 kg (Tow Bar + Box)
-Max. Load 8 000 N-
Max. Towing force 15,000 N
